ADAPTER 12NPT TO 16BSPP

Description & Features

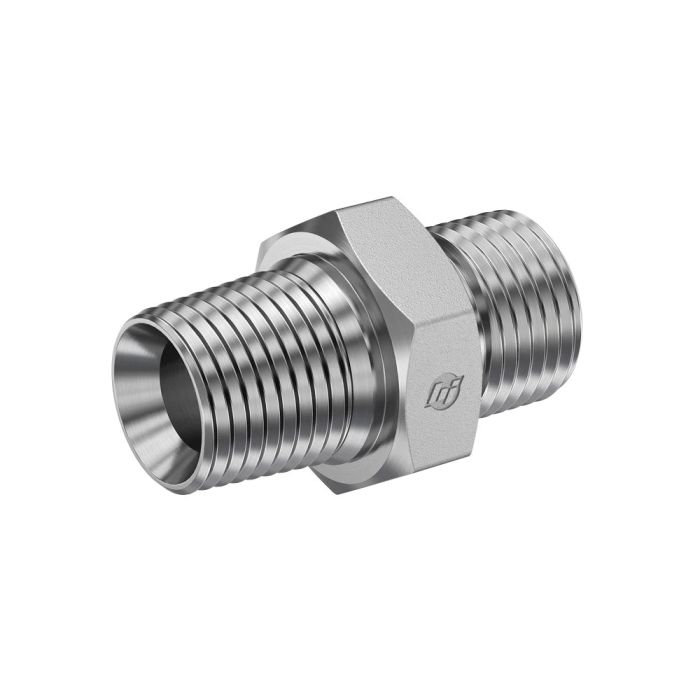

This straight steel adapter connects a 3/4-14 male NPT thread to a 1-11 male BSPP thread with a 60-degree seat. It features a 60-degree seat swivel connection for secure and reliable performance in demanding hydraulic applications. The Brennan Series 7032 adapter is suitable for various industrial applications.

The ADAPTER 12NPT TO 16BSPP offers a dependable solution for connecting different thread types within hydraulic and fluid systems. With thread drill sizes of 17.0 mm and 22.0 mm, this adapter ensures precise and secure connections.

SKU: 7032-12-16

Supplier Part Number (MPN): 7032-12-16

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male BSPP 60 deg Cone Seat
Cubic Inch Space L x W x H Dimensions
5.437 cu-in
Dimension Standards
SAE J476
Dimensions
53.5 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
41 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Series
7032 Series
Thread B1 Drill Dimensions
17 mm
Thread B2 Drill Dimensions
22 mm
Thread Size
1-11 x 3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Male BSPP (British Parallel) To 3/4-14 Male NPT, Straight

7032-12-12 Steel Male BSPP To NPT Adapter

3/4 in

3/4 in

3/4-14

32 mm

Brennan MNPT X MBSPP

7032-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

19 mm

06MP X 04MBSPP STRAIGHT

7032-06-04

3/8 in

1/4 in

1/4-19 x 3/8-18

19 mm

06MP-06MBSPP STRAIGHT

7032-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

22 mm

08MP-08MBSPP STRAIGHT

7032-08-08

1/2 in

1/2 in

1/2-14

27 mm

BRENNAN ADAPTER

7032-16-20

1 in

1-1/4 in

1-11 x 1-1/4-11-1/2

ADAPTERS NPT/MBSPP

7032-24-24

1-1/2 in

1-1/2 in

1-1/2-11 x 1-1/2-11-1/2

55 mm

ADPTR MP-MBSPP STRT

7032-24-32

1-1/2 in

2 in

2-11 x 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Debbie K on Jan 19, 2026, 12:30 PM
What kind of threads does this adapter use?
Answer by: Customer Support on Jan 20, 2026, 6:31 PM
This adapter features a 3/4-14 male NPT thread on one side and a 1-11 male BSPP thread with a 60-degree seat on the other.
