BRENNAN ADAPTER

Description & Features

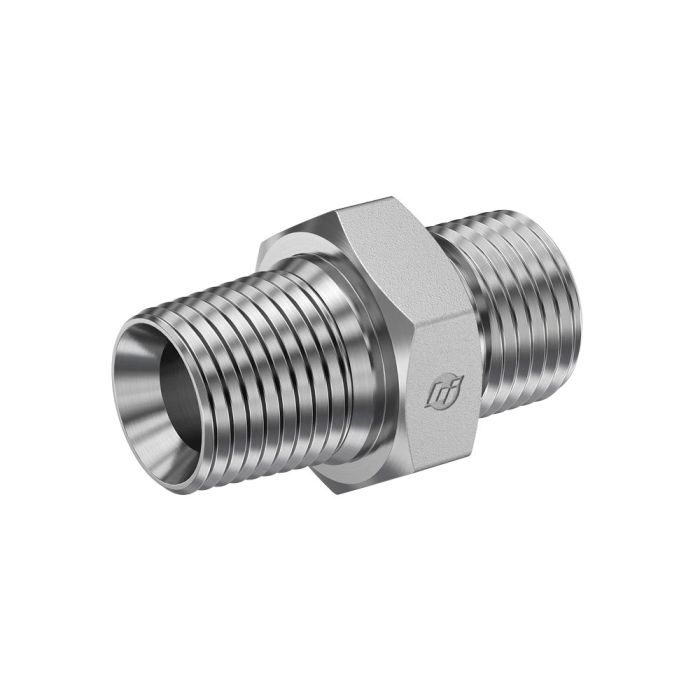

This straight steel Brennan adapter features a male NPT to male BSPP with a 60-degree seat connection. The Brennan adapter's B1 thread size is 1-11-1/2 with a 22.5mm thread drill, while the B2 thread size is 1-1/4-11 with a 30.0mm thread drill. The B1 thread specification adheres to ANSI B1.20.1 standards, and the B2 thread specification includes a 60-degree swivel seat connection.

This adapter is part of the 7032 series.

SKU: 7032-16-20

Supplier Part Number (MPN): 7032-16-20

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male BSPP 60 deg Cone Seat
Cubic Inch Space L x W x H Dimensions
9.306 cu-in
Dimension Standards
SAE J476
Dimensions
63.4 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
1500 psi
Series
7032 Series
Thread B1 Drill Dimensions
22.5 mm
Thread B2 Drill Dimensions
30 mm
Thread Size
1-11 x 1-1/4-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Male BSPP (British Parallel) To 3/4-14 Male NPT, Straight

7032-12-12 Steel Male BSPP To NPT Adapter

3/4 in

3/4 in

3/4-14

32 mm

Brennan MNPT X MBSPP

7032-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

19 mm

06MP X 04MBSPP STRAIGHT

7032-06-04

3/8 in

1/4 in

1/4-19 x 3/8-18

19 mm

06MP-06MBSPP STRAIGHT

7032-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

22 mm

08MP-08MBSPP STRAIGHT

7032-08-08

1/2 in

1/2 in

1/2-14

27 mm

ADAPTER 12NPT TO 16BSPP

7032-12-16

3/4 in

1 in

1-11 x 3/4-14

41 mm

ADAPTERS NPT/MBSPP

7032-24-24

1-1/2 in

1-1/2 in

1-1/2-11 x 1-1/2-11-1/2

55 mm

ADPTR MP-MBSPP STRT

7032-24-32

1-1/2 in

2 in

2-11 x 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Freddie T on May 20, 2025, 4:02 PM
Will this adapter work with a standard NPT fitting on one side and a BSPP fitting on the other?
Answer by: Customer Support on May 22, 2025, 6:11 AM
Correct, this Brennan adapter has a male NPT on one end and a male BSPP with a 60-degree seat on the other, so it's made for connecting those two different thread types.
