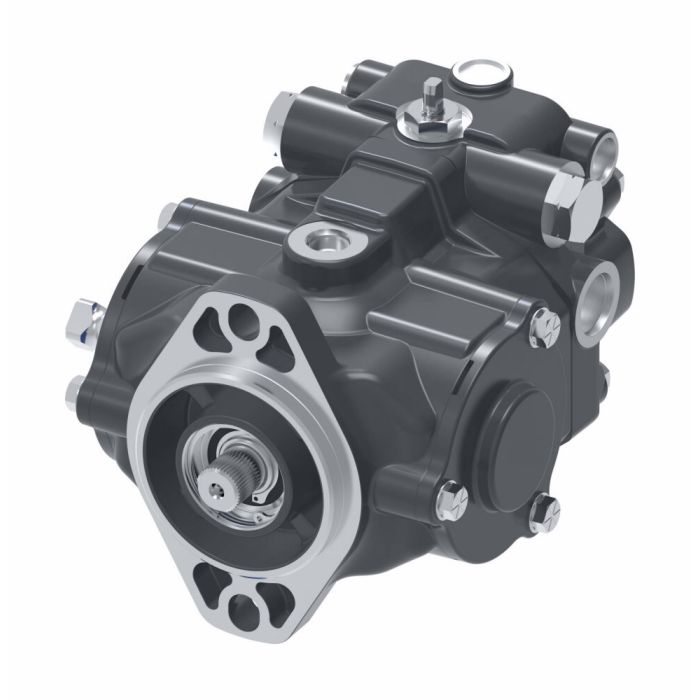

DANFOSS / EATON 2.48 CID PISTON PUMP ASSY

Ask A Question

Description & Features

This DANFOSS / EATON 2.48 CID PISTON PUMP ASSY is a variable displacement pump designed for medium-duty closed circuit applications.

Well-suited for construction, agriculture, truck and bus, and oil and gas applications, this pump features an easy-to-operate sealed system and is flexible for multiple applications.

Displacements range from 20cc to 49cc (1.22 to 3.00 cu in).

SKU: 70360-RAB-02

Supplier Part Number (MPN): 70360-RAB-02

Specifications

Brand
Danfoss
Additional Function
Bleed-Off in Control Shaft (100 to 150 sq-in/lb)
Control Shaft
Left, 19.1 mm [3/4 in] Square Shaft with Bolt Groove, 134.1 mm [5.28 in] From Centerline to Control Shaft End
Control Type
Manual
Design Code
B
Dimensions
10.82 in L x 6.62 in W x 7.02 in H
Drain Port Size and Location
3/4-16 UNF-2B SAE O-ring Port, Top (D1), 3/4-16 UNF-2B SAE O-ring Port, Bottom, Plugged (D2), Thru Drain Into Front Mountingflange (D4)
Drive Shaft Type
41 Teeth Splined
Housing Color
Black
Housing Material
Aluminum
Inlet Type
SAE Threaded
Maximum Operating Pressure
3500 psi
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Type
SAE Threaded
Relief Valve Set Main Port B
241.3 bar [3500 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
70360 Series
Shaft Pitch
16/32

Product Questions & Answers (1)

Question by: Melvin L on Oct 26, 2025, 2:28 PM
This pump assembly… is it okay for continuous duty, or is it more for intermittent use?
Answer by: Customer Support on Oct 28, 2025, 10:53 AM
Designed for medium-duty closed circuit applications, this pump assembly should perform well in situations where consistent, but not extreme, demands are placed on the hydraulic system.
