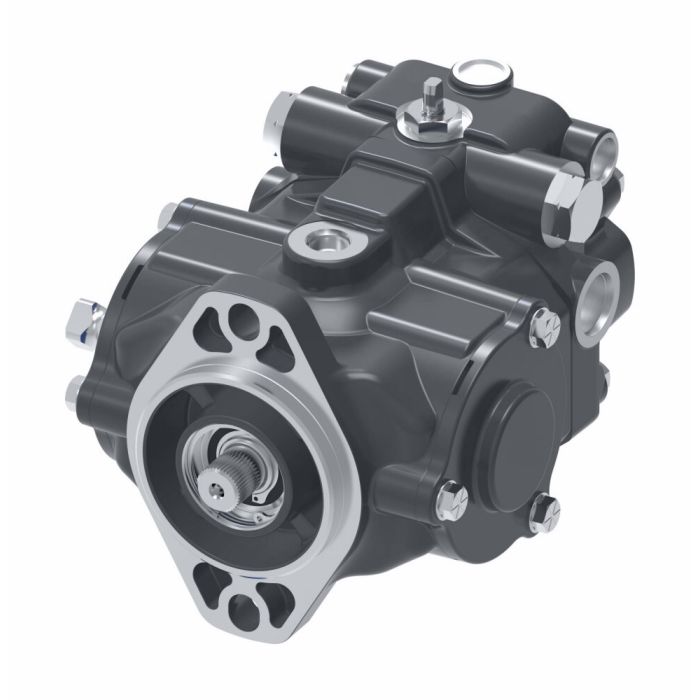

DANFOSS / EATON 2.48 MANUAL VARIABLE DISPLACEMENT

Ask A Question

Description & Features

Designed for mobile hydraulic applications, the Danfoss / Eaton 2.48 Manual Variable Displacement pump delivers operator-controlled flow adjustment suited to demanding closed-circuit piston pump configurations. The manual displacement control allows direct, mechanical input for precise output regulation without reliance on electronic or automatic control systems.

Classified under mobile closed-circuit piston pumps, this unit is well-suited to mobile machinery where variable flow demands require responsive, field-adjustable displacement. The 2.48 displacement rating positions it for mid-range mobile circuit applications where consistent performance under variable load conditions is required.

SKU: 70360-RDW-02

Supplier Part Number (MPN): 70360-RDW-02

Specifications

Brand
Danfoss
Auxiliary Mount Output Shaft
Vertical, Accepts SAE J744 Flanged 101-2 (2-Bolt B), Accepts 41 Tooth 48/96 Pitch Spline with 24.9 mm [0.98 in] Shaft Ext, (Coupler Required)
Code Title
Medium Duty Manually Variable Displacement Axial Piston Pump with SAE J744 Flanged 101-2 (2 Bolt B)
Control Type
Manual
Design Code
B
Dimensions
11.01 in L x 9.71 in W x 6.91 in H
Displacement and Valve Plate
40.6 cc/rev [2.48 cu-in/rev], Rks, Vpt 1
Drive Shaft Type
15 Teeth Splined
Housing Color
Blue
Housing Material
Aluminum
Inlet Type
SAE Threaded
Input Shaft Rotation
Clockwise (Right-Hand)
Main Ports (A and B)
1-1/16-12 Un-2B SAE O-ring Ports, Opposite Sides
Maximum Operating Pressure
4500 psi
Mounting Type
2-Bolt Flanged
Outlet Type
SAE Threaded
Relief Valve Set Main Port A
310.3 bar [4500 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
70360 Series
Shaft Pitch
16/32

Product Questions & Answers (1)

Question by: Harold G on May 17, 2025, 11:49 AM
Will this pump work in a closed-loop system on my farm equipment?
Answer by: Customer Support on May 18, 2025, 7:59 PM
Classified as a mobile closed-circuit piston pump, this Danfoss/Eaton unit is designed for those types of hydraulic setups, especially where you need to manually adjust the flow.
