DANFOSS / EATON ACV20RBN1QQA5A023000CCD0B

Description & Features

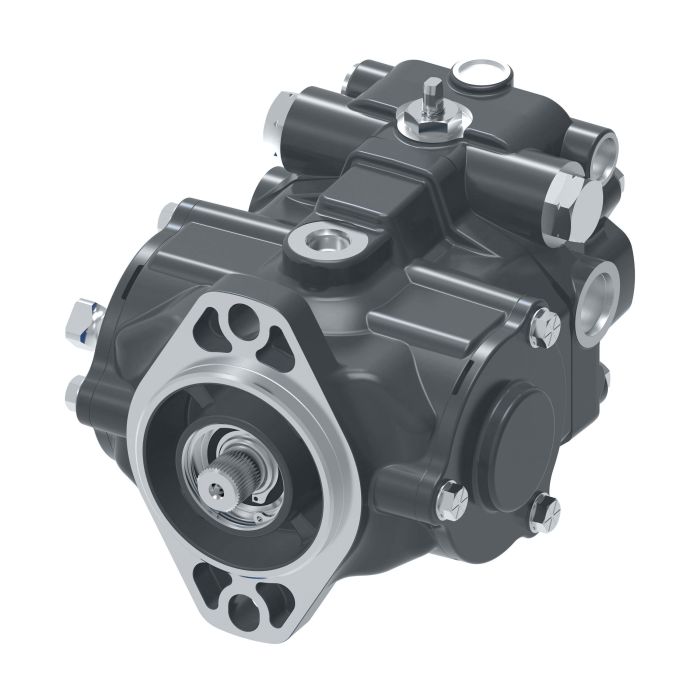

The DANFOSS / EATON ACV20RBN1QQA5A023000CCD0B is a mobile CC piston pump designed for demanding industrial applications.

This Char-Lynn pump is a web-item, ensuring it is readily available.

SKU: 70360-RDY-02

Supplier Part Number (MPN): 70360-RDY-02

Brand Danfoss	Auxiliary Mount Output Shaft Horizontal SAE J744 Flanged 82-2 (2-Bolt A), Accepts 11 Tooth 16/32 Pitch Spline with 31.7 mm [1-1/4 in] Shaft Ext, (Coupler and Spacerrequired)	Control Shaft Left, 25.27 to 25.35 mm [0.995 to 0.998 in] Dia Straight Shaft with 6.27 to 6.35 mm [0.247 to 1/40 in] W x 19 mm [3/4 in] L Key, 128 mm [5.04 in] From Centerline to Control Shaft End, 3/8-24 UNF-2B Thread, 15.2 mm [0.6 in] Min Full Thread	Control Type Manual	Design Code B	Dimensions 10.16 in L x 8.86 in W x 6.91 in H	Drain Port Size and Location 3/4-16 UNF-2B SAE O-ring Port, Top, Plugged (D1), 3/4-16 UNF-2B SAE O-ring Port, Bottom (D2), Thru Drain Into Front Mountingflange (D4)	Drive Shaft Type 41 Teeth Splined	Housing Color Blue	Housing Material Aluminum	Inlet Type SAE Threaded	Maximum Operating Pressure 4500 psi	Mounting Type 2-Bolt Flanged	Outlet Type SAE Threaded	Relief Valve Set Main Port A 310.3 bar [4500 lbf/sq-in]	Rotation Direction Clockwise (Right Hand)	Series 70360 Series	Shaft Pitch 16/32	Special Features Bottom Mounting Bracket with 13.7 mm [0.54 in] Dia Hole

Question by: Jimmy G on May 29, 2025, 7:59 AM

Is this Eaton pump considered a web item, meaning it's usually in stock?

Answer by: Customer Support on May 30, 2025, 8:12 AM

Yes, that's correct. Being a web-item means this Char-Lynn pump is readily available.
