BRENNAN SS ADAPTER

Ask A Question

Description & Features

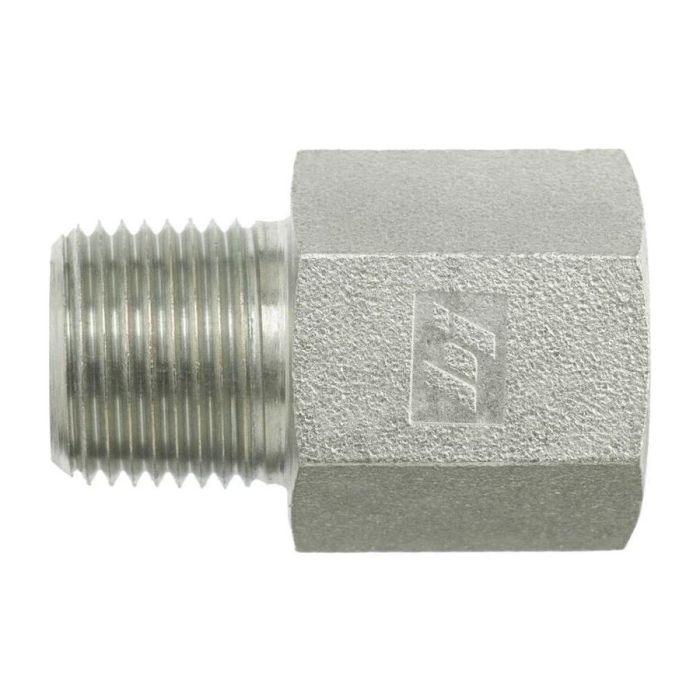

This Brennan SS ADAPTER features a straight configuration and is part of the 7040 series. Constructed from durable steel, it ensures reliable performance in demanding hydraulic applications.

The adapter includes a 1/4-18 female NPT thread (ANSI B1.20.1) and a 1/4-19 male BSPT (R) thread (ISO 7-1), providing secure and leak-free connections. This facilitates versatile integration into various systems.

SKU: 7040-04-04

Supplier Part Number (MPN): 7040-04-04

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male BSP
Connection Type 1
Female SAE NPTF
Connection Type 2
Male BSPT 30 deg
Cubic Inch Space L x W x H Dimensions
0.76 cu-in
Dimension Standards
SAE J476
Dimensions
35.3 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
7040 Series
Thread B1 Drill Dimensions
7.1 mm
Thread B2 Drill Dimensions
6 mm
Thread Size
1/4-19 x 1/4-18

Product Questions & Answers (1)

Question by: Norm D on Aug 27, 2025, 10:02 AM
I need somethin' to go from a female NPT to a male BSPT... will this do the trick?
Answer by: Customer Support on Aug 28, 2025, 3:12 PM
Yes sir, this Brennan adapter is built exactly for that. It's got a 1/4-18 female NPT thread on one side and a 1/4-19 male BSPT (R) thread on the other.
