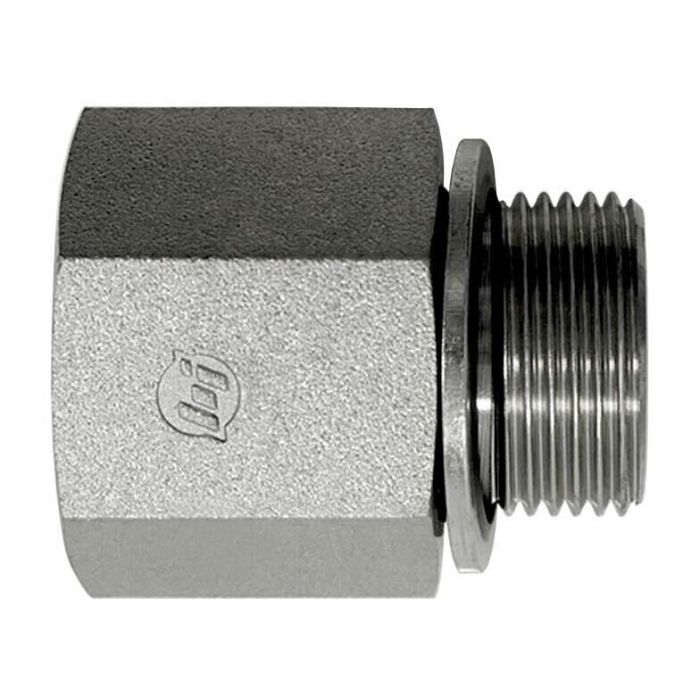

main product photo

04FP-04MBSPP STRAIGHT WITH BONDED SEAL

Ask A Question

Description & Features

This straight fitting, part number 04FP-04MBSPP, features a female NPT thread on one end conforming to ANSI B1.20.1 with a 1/4-18 thread size. The opposite end features a male BSPP thread with a 60-degree seat, sized at 1/4-19.

Constructed from straight steel, this 04FP-04MBSPP STRAIGHT WITH BONDED SEAL incorporates a bonded seal made from NBR, Brennan assembled part number 9900-04.

SKU: 7042-04-04-BS

Supplier Part Number (MPN): 7042-04-04-BS

Specifications

Brand
BRENNAN
Additional Information
Bonded Seal
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male BSP
Connection Type 1
Female NPTF
Connection Type 2
Male BSPP 60 deg Cone
Dimension Standards
ANSI B1.20.1, SAE J476
Dimensions
31.6 mm L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5100 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7042-BS Series
Thread Size
1/4-19 x 1/4-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Phil H on Apr 22, 2025, 5:17 PM
So, this has a female NPT on one side and a male BSPP on the other, right? Just makin' sure I'm readin' it right.
Answer by: Customer Support on Apr 23, 2025, 7:20 PM
That's correct. This fitting has a female NPT thread conforming to ANSI B1.20.1 on one end, and a male BSPP thread with a 60-degree seat on the other.
