AAGRAG0716AJF00AB000A

Ask A Question

Description & Features

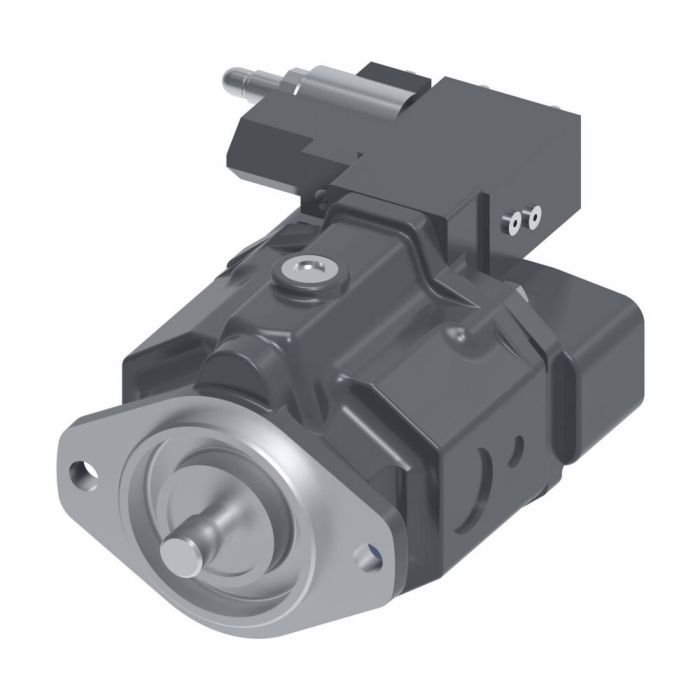

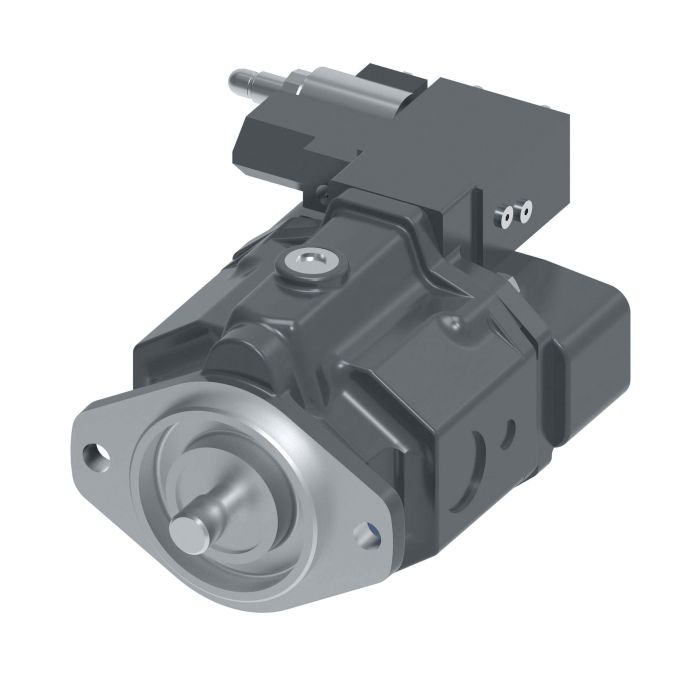

Designed for mobile hydraulic applications, the Danfoss Power Solutions 70422 Series open circuit piston pump model AAGRAG0716AJF00AB000A is built around a compact, lightweight aluminum construction that suits weight-sensitive mobile equipment installations. The aluminum housing keeps overall mass low without sacrificing structural durability under demanding duty cycles.

Multiple shaft configuration options provide installation flexibility across a range of mobile machine architectures, and an auxiliary mounting flange is available where additional component integration is required. The open circuit design makes this pump well suited for mobile hydraulic systems requiring straightforward flow control and efficient power transmission.

SKU: 70422-RBK

Supplier Part Number (MPN): 70422-RBK

Specifications

Brand
Danfoss
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
10.76 in L x 6.88 in W x 6.51 in H
Drive Shaft Type
Splined
Housing Material
Aluminum
Inlet Type
SAE ORB
Maximum Operating Pressure
3000 psi
Mounting Type
2-Bolt Flanged
Outlet Type
SAE ORB
Rotation Direction
Clockwise
Series
70422 Series

Product Questions & Answers (1)

Question by: Brett W on Jul 24, 2025, 8:55 AM
Wondering if this pump would hold up okay on a piece of mobile equipment that sees pretty heavy use?
Answer by: Customer Support on Jul 25, 2025, 7:35 PM
For mobile hydraulic applications facing demanding duty cycles, this pump's aluminum housing is designed to maintain structural durability while keeping the weight down.
