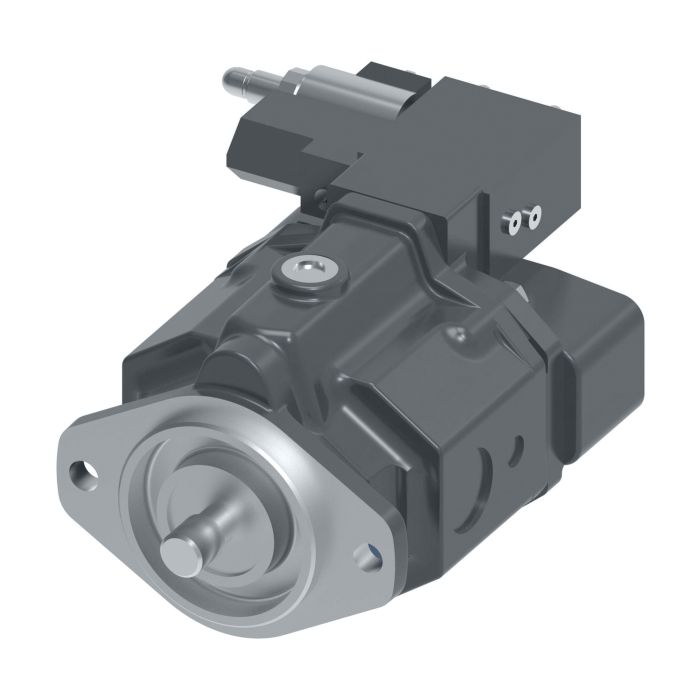

main product photo

Cessna 2.77 CI LS PMP-CCW

Ask A Question

Description & Features

Designed for mobile hydraulic applications, this 2.77 cubic inch load-sensing piston pump from Eaton Char-Lynn (Danfoss Power Solutions) delivers counterclockwise rotation in a compact, lightweight aluminum housing. The open-circuit configuration suits a range of mobile equipment where efficient, responsive pressure control is required.

The Cessna 2.77 CI LS PMP-CCW is built with durability in mind, featuring multiple shaft options to accommodate various drive configurations and an auxiliary mounting flange that supports tandem or multi-pump arrangements. The aluminum construction keeps overall weight low without sacrificing structural integrity in demanding mobile environments.

SKU: 70423-LBG

Supplier Part Number (MPN): 70423-LBG

Specifications

Brand
Danfoss
Control Type
Pressure and Flow Compensator
Dimensions
10.76 in L x 6.88 in W x 6.51 in H
Drive Shaft Type
Splined
Housing Material
Aluminum
Inlet Type
SAE ORB
Maximum Operating Pressure
3000 psi
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Type
SAE ORB
Rotation Direction
Counterclockwise
Segment Code
B
Series
70423 Series

Product Questions & Answers (1)

Question by: Donna P on Nov 13, 2025, 8:46 PM
what's the rotation on this pump, clockwise or counter?
Answer by: Customer Support on Nov 15, 2025, 8:40 AM
Counter-clockwise rotation on this one. The CCW designation in the model name confirms that. Worth double-checking your application matches before ordering, since rotation direction on piston pumps isn't something you can just flip around after the fact.
