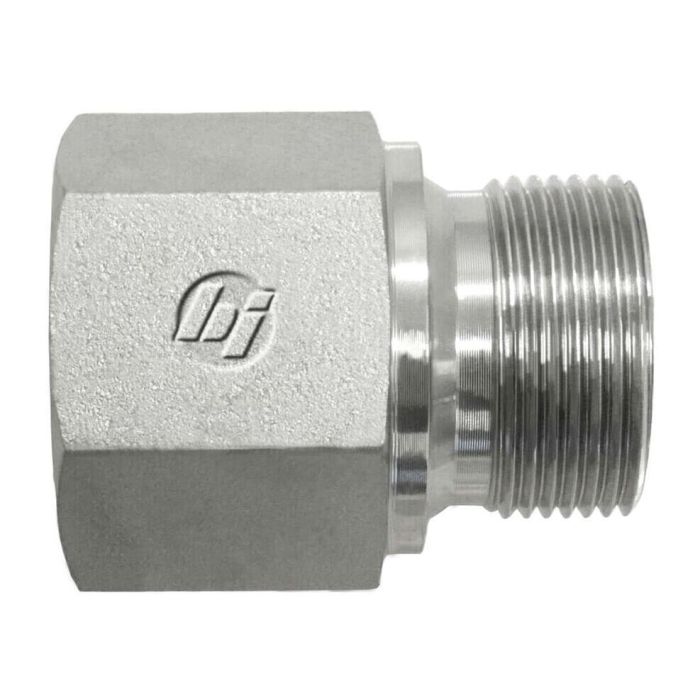

main product photo

04FP-10MM STRAIGHT

Ask A Question

Description & Features

The 04FP-10MMX1.0 Straight adapter is crafted by Brennan Industries Inc. for high-performance industrial applications. This adapter, part of the 7045 Series, is made of straight steel, ensuring durability and longevity in demanding environments.

Designed to follow ANSI B1.20.3 and ISO 9974 standards, it features a Female NPTF thread type on one end and a Male Metric thread type on the other. The thread sizes are 1/4-18 and M10X1.0 respectively, providing a reliable connection for various industrial components.

The thread drill diameters are precisely measured at 7.1mm and 4.4mm, ensuring an exact fit and secure connection. This adapter occupies a compact space of 0.683 cubic inches, making it ideal for systems with space constraints.

Supplier Part Number: 7045-04-10

This adapter also includes a PROP-65 WARNING for California residents.

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
10 mm
Connection Type
FNPT, Male Metric
Connection Type 1
Female SAE NPTF
Connection Type 2
Male Metric 60 deg Cone
Cubic Inch Space L x W x H Dimensions
0.683 cu-in
Dimension Standards
SAE J476
Dimensions
28.6 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
7045 Series
Thread B1 Drill Dimensions
7.1 mm
Thread B2 Drill Dimensions
4.4 mm
Thread Size
1/4-18 x M10x1

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
08FP-22MM STRAIGHT

7045-08-22

1/2 in

22 mm

M22x1.5 x 1/2-14

28 mm

Product Questions & Answers (3)

Question by: Scott C on Jun 13, 2025, 8:32 PM
i’ve got a 1/4-18 female nptf port on one side and need to go to M10x1.0 male on the other. is that what this adapter does
Answer by: Customer Support on Jun 15, 2025, 6:05 PM
Built as a straight thread adapter, it connects a 1/4-18 Female NPTF end to an M10x1.0 Male Metric end, so it fits that exact thread changeover.
Question by: Wade T on Aug 22, 2025, 9:53 PM
So this thing's steel, reckon it'll hold up okay outside?
Answer by: Customer Support on Aug 24, 2025, 11:33 AM
Straight steel construction ensures it's durable enough for demanding environments.
Question by: Tommy M on Nov 5, 2025, 1:38 PM
what's the thread setup on this adapter, one end metric and the other standard pipe thread?
Answer by: Customer Support on Nov 6, 2025, 2:33 PM
That's how it's set up. One end is a 1/4-18 Female NPTF, which follows the ANSI B1.20.3 spec, and the other is a Male Metric M10X1.0 thread built to ISO 9974. So if you're bridging a metric port over to a standard NPT fitting on the other side, this one handles that transition straight out of the box.
