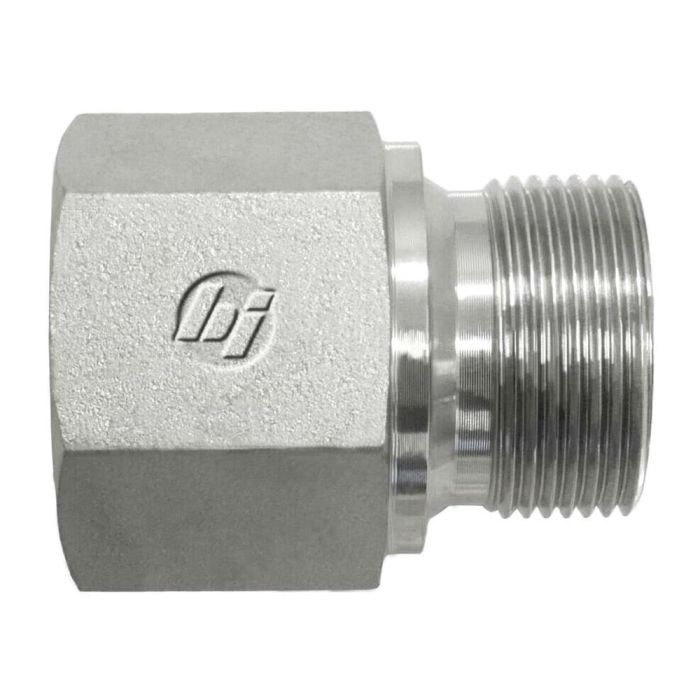

main product photo

08FP-22MM STRAIGHT

Ask A Question

Description & Features

This 08FP-22MM STRAIGHT fitting is engineered for precision in industrial hydraulic systems. Constructed from high-quality straight steel, it ensures durability and reliable performance under demanding conditions. Featuring a female NPTF thread size of 1/2-14 and a male metric thread size of M22x1.5, this fitting adheres to ANSI B1.20.3 and ISO 9974 standards, making it compatible with a broad range of applications.

The fitting's design facilitates secure and efficient connections between components, ensuring optimal fluid flow and system integrity. With a thread drill specification of 16.5 mm for B1 and 14.0 mm for B2, it effectively supports system integration in various industrial settings. Manufactured by Brennan Industries, this fitting is part of the Brennan Series 7045, a trusted name in hydraulic components.

SKU: 7045-08-22

Supplier Part Number (MPN): 7045-08-22

Specifications

Connection Size 1
1/2 in
Connection Size 2
22 mm
Connection Type
FNPT, Male Metric
Connection Type 1
Female SAE NPTF
Connection Type 2
Male Metric 60 deg Cone
Cubic Inch Space L x W x H Dimensions
2.011 cu-in
Dimension Standards
SAE J476
Dimensions
42 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
28 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3500 psi
Series
7045 Series
Thread B1 Drill Dimensions
16.5 mm
Thread B2 Drill Dimensions
14 mm
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kent L on Mar 11, 2026, 11:56 AM
Will this here fitting hold up in a hydraulic system running at, say, 3000 psi? Don't want no blowouts.
Answer by: Customer Support on Mar 12, 2026, 5:31 PM
Constructed from high-quality straight steel and made by Brennan Industries, this fitting is designed for secure and efficient connections in demanding industrial hydraulic systems. While the exact pressure rating isn't specified, the materials and manufacturing suggest it's built for robust performance.
