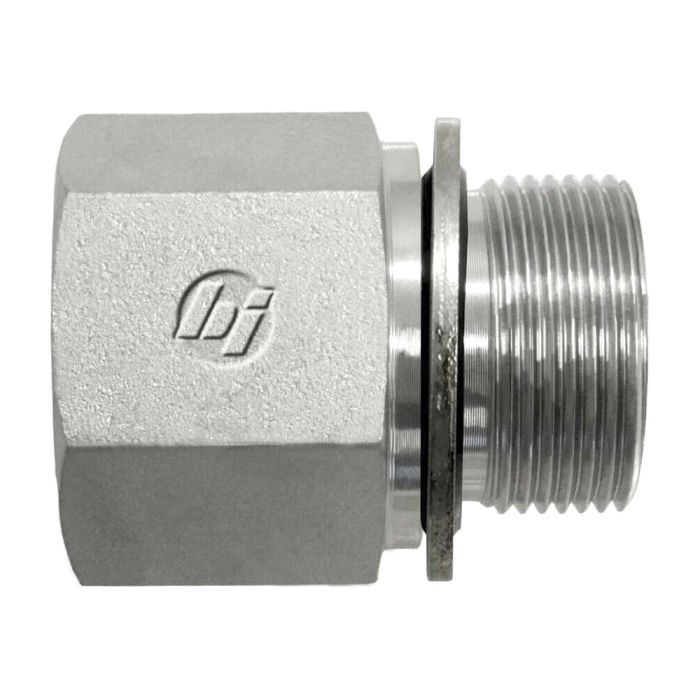

12FP-27 MM X 2.0 STRAIGHT W BONDED SEAL

Description & Features

This straight steel fitting, designated as 12FP-27 MM X 2.0 STRAIGHT W BONDED SEAL, features a male metric M27X2.0 thread and a female NPTF 3/4-14 thread, conforming to ANSI B1.20.3 standards.

It incorporates an 8800-27 Brennan assembled metric bonded seal with NBR O-ring seal material.

SKU: 7045-12-27-BS

Supplier Part Number (MPN): 7045-12-27-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 3/4 in	Connection Type FNPT, Male Metric	Connection Type 1 Female SAE NPTF	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards ANSI B1.20.3, SAE J476	Dimensions 45.5 mm L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 1-3/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 3500 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7045-BS Series	Thread Size 3/4-14 x M27x2

Product Questions & Answers (1)

Question by: Brent B on Nov 25, 2025, 1:35 PM

What size threads does this fitting have? I'm needing to hook up something with metric threads to a standard pipe thread.

Answer by: Customer Support on Nov 27, 2025, 6:27 AM

This straight fitting has a male metric M27X2.0 thread on one end and a female NPTF 3/4-14 thread on the other, according to ANSI B1.20.3 standards.
