12MORB-12MBSPP STRAIGHT

Ask A Question

Description & Features

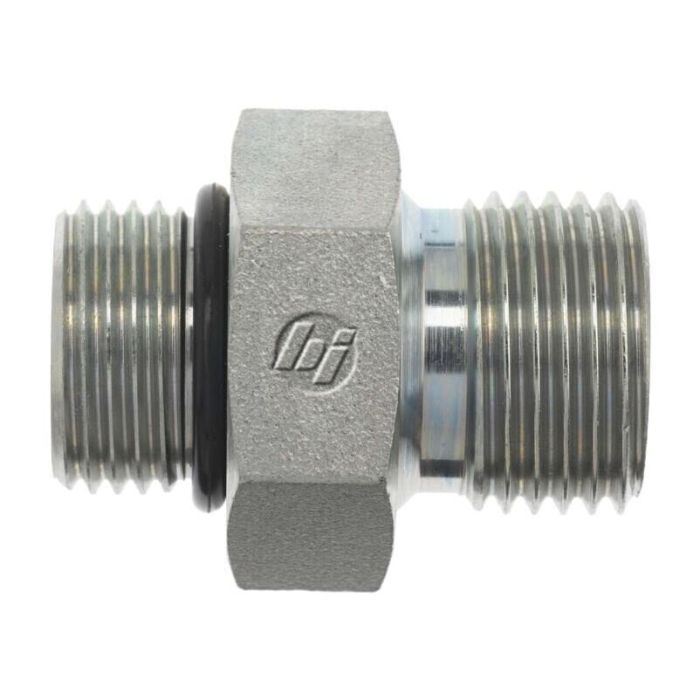

This straight steel fitting, part number 7062-12-12, features a male SAE O-ring Boss connection on one end and a male BSPP with a 60-degree seat on the other. The 12MORB-12MBSPP STRAIGHT is part of the 7062 series from Brennan Industries.

It has a 1-1/16-12 thread size on the B1 side (SAE J514 specification) and a 3/4-14 thread size on the B2 side, along with a 60-degree seat swivel connection. The O-ring seal is made of NBR material. Brennan California Residents please note the PROP-65 warning.

SKU: 7062-12-12

Supplier Part Number (MPN): 7062-12-12

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male BSP, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Male BSPP 60 deg Cone Seat
Cubic Inch Space L x W x H Dimensions
2.999 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
48 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
7062 Series
Thread B1 Drill Dimensions
15.5 mm
Thread B2 Drill Dimensions
15.5 mm
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Howard B on Aug 26, 2025, 4:42 PM
So, will this fitting work for connecting a male SAE O-ring to a male BSPP connection?
Answer by: Customer Support on Aug 28, 2025, 6:59 AM
This fitting is indeed designed to connect a male SAE O-ring Boss connection to a male BSPP connection with a 60-degree seat.
