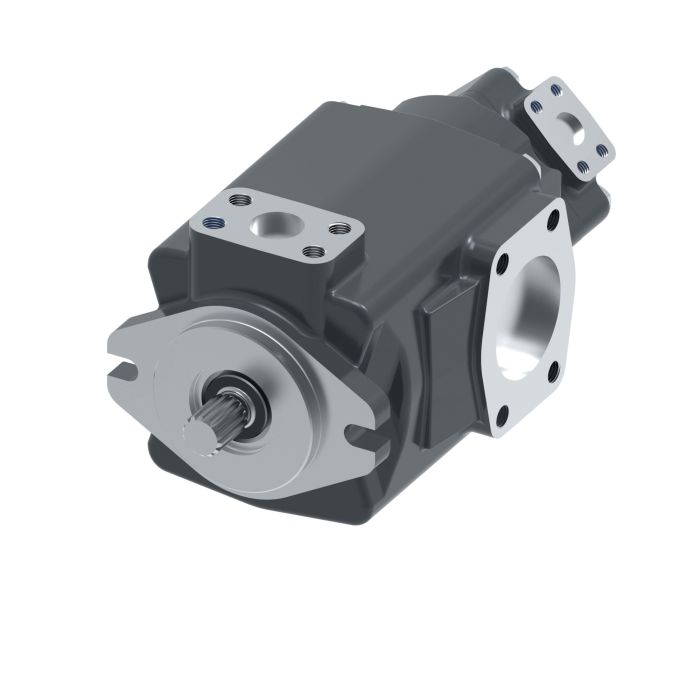

main product photo

VICKERS VMQ24535S195125B00100AAABBANR00A

Ask A Question

Description & Features

The Vickers VMQ Series Vane Pumps, including the VMQ24535S195125B00100AAABBANR00A model, are designed for demanding industrial applications such as oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding. Known for their robust cast iron construction, these pumps offer exceptional durability and performance. The unique wafer plate design ensures efficient operation with minimal noise, even under the highest pressure conditions. With a flow rate of up to 268.91 litres per minute, this pump is ideal for systems requiring reliable and consistent hydraulic power.

Featuring a single, double, or triple pump configuration, the Vickers VMQ Series provides flexibility and versatility for various industrial needs. The use of Buna-N for seal material enhances the pump's resistance to oil and other hydraulic fluids, ensuring long-lasting service.

SKU: 714-0008-032

Supplier Part Number (MPN): 714-0008-032

Specifications

Brand
Vickers by Danfoss
Cartridge Type
32 Design
Dimensions
19.8 in L x 8.39 in W x 8.35 in H
Displacement
11.89 cu-in Front Section, 7.63 cu-in Rear Section
Drive Shaft Type
Keyed
Flow Rate
60 to 115.1 gpm , 70.9 to 112.4 gpm
Housing Material
Iron
Maximum Operating Pressure
4000 psi
Mounting Type
Flanged
nmfc
77.50
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
C
Series
VMQ2 Series
Speed Rating
1800 rpm at 120 deg F, 3000 at 120 deg F

Product Questions & Answers (1)

Question by: Jerry M on May 5, 2025, 5:38 PM
Reckon this'll hold up in a dump truck application? We really put our equipment through the wringer.
Answer by: Customer Support on May 7, 2025, 6:48 AM
It’s designed for demanding industrial uses like dump trucks, so it should be a solid choice. The cast iron build is pretty tough.
