45* Din X Male Metric Adj

Description & Features

This 45° steel elbow adapter is designed for seamless integration with hydraulic systems, offering robust performance and durability. The male metric adjustable fitting features a Din tube on Side 1, specified as M22 x 1.5 with a size of S14, and a metric connection on Side 2, specified as M20 x 1.5 with a 20mm size. This precise design ensures compatibility with various industrial applications, providing reliable connectivity where it’s needed most.

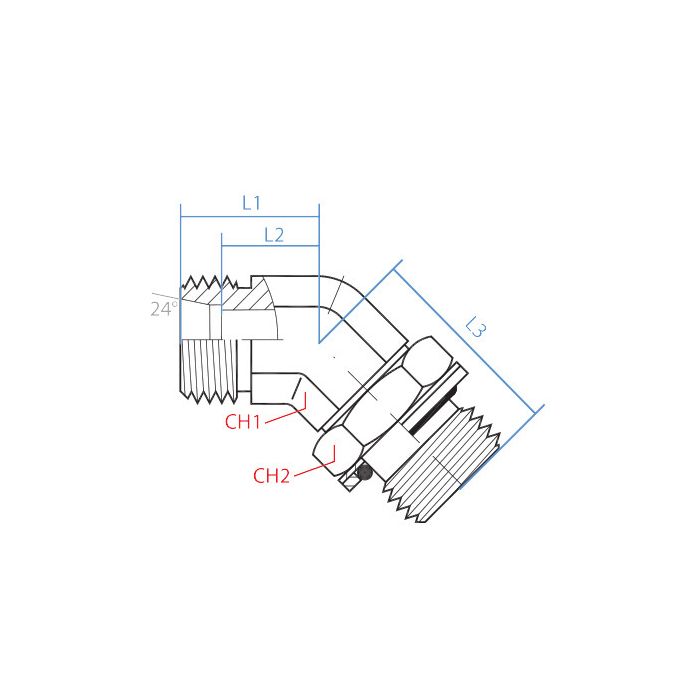

Manufactured by Adaptall, this adapter is crafted from high-quality steel, ensuring longevity and resistance to wear in demanding environments. The compact dimensions, including a Ch1 width of 22mm, Ch2 width of 24mm, and lengths of 24mm (L1) and 16mm (L2), make it a versatile choice for space-constrained setups. Its 37mm L3 length further enhances its adaptability in complex hydraulic configurations.

SKU: 5066S-14-20

Supplier Part Number (MPN): 5066S-14-20

Specifications

CH1 Width 22mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 16mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-14-20	Product Weight 0.29 lbs

Product Questions & Answers (2)

Question by: Brett H on Feb 5, 2026, 10:31 AM

Reckon this here elbow fitting will hold up okay in a hydraulic setup for some heavy equipment?

Answer by: Customer Support on Feb 6, 2026, 1:17 PM

Designed for robust performance and durability, this Adaptall 45° steel elbow adapter is well-suited for demanding hydraulic systems. Its steel construction ensures longevity and resistance to wear, making it a reliable choice for heavy equipment applications.

Question by: Pete G on Oct 21, 2025, 2:46 PM

trying to swap out an elbow on my hydraulic line, is this one the 45 degree with M22 x 1.5 on one side and M20 x 1.5 on the other?

Answer by: Customer Support on Oct 22, 2025, 8:56 PM

It’s a 45° steel elbow adapter with a male DIN tube end on Side 1 (M22 x 1.5, size S14) and a male metric end on Side 2 (M20 x 1.5, size 20mm).
