Male Bspp 1" - Male Jic 1"

Description & Features

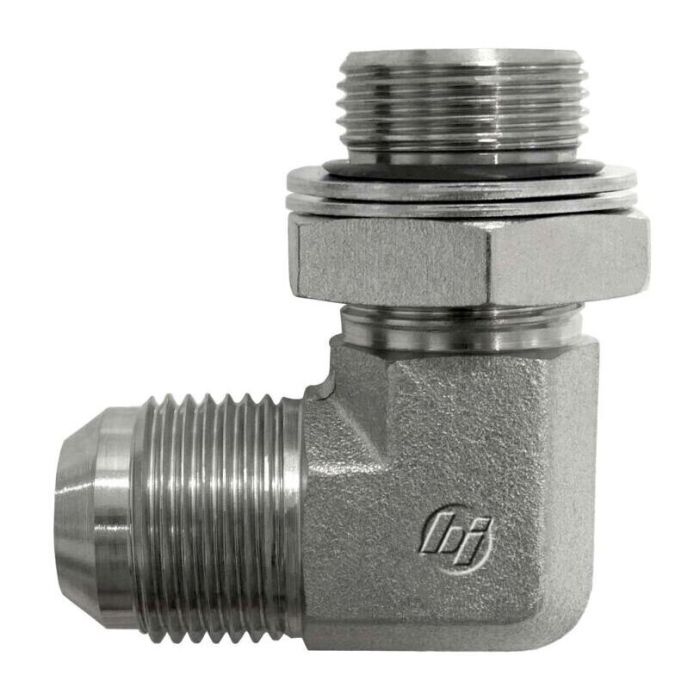

Constructed from a steel forging, this 90-degree elbow adapter connects a Male JIC SAE 37-degree flare thread (1-5/16-12, per SAE J514) to a Male Bspp 1" - Male Jic 1" configuration with an adjustable O-ring face seal on the BSPP end. The NBR O-ring seal material provides reliable resistance to petroleum-based hydraulic fluids in demanding industrial environments. A hex wrench flat of 41.0 mm allows for secure installation and proper torque application during assembly.

Manufactured by Brennan Industries Inc under the 7202-NWO-FG-ORR series, this forged steel elbow is suited for hydraulic circuit connections requiring a directional change between JIC and BSPP threaded ports. California residents should note that this product carries a Prop 65 warning.

SKU: 7202-16-16-NWO-FG

Supplier Part Number (MPN): 7202-16-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 7202-16-16-NWO-FG	Product Weight 0.98 lbs

Product Questions & Answers (1)

Question by: Ralph G on Mar 6, 2026, 6:01 PM

Will this fitting hold up if I'm running it pretty much constantly?

Answer by: Customer Support on Mar 8, 2026, 6:00 AM

Constructed from forged steel, this elbow adapter should provide reliable performance in continuous-duty hydraulic applications where petroleum-based fluids are used.
