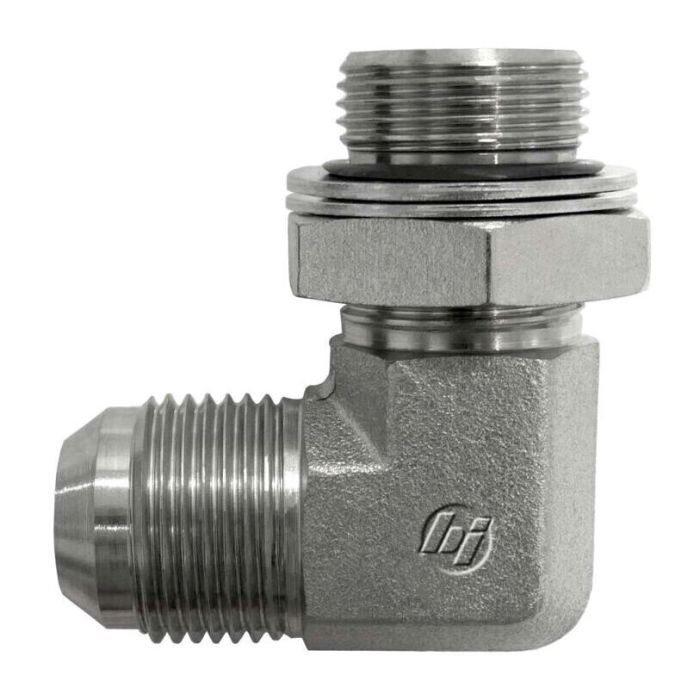

main product photo

20 MJ - 16 MBSPP 90 ELBOW

Ask A Question

Description & Features

This forged steel 90-degree elbow features a 1-5/8-12 SAE J514 male JIC 37-degree flare connection and a 1-11 Male BSPP adjustable ORR connection. The 20 MJ - 16 MBSPP 90 ELBOW is part of the 7202-NWO-FG-ORR series.

It utilizes an NBR O-ring seal and incorporates a thread drill B1 of 27.4 mm and a thread drill B2 of 21.5 mm. Its dimensions are 21.970 cubic inches (L x W x H), with a Brennan Hex C 1 of 41.0 mm.

SKU: 7202-20-16-NWO-FG

Supplier Part Number (MPN): 7202-20-16-NWO-FG

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP Adjustable O-ring
Dimension Standards
SAE J514
Finish
Zinc Trivalent
Fitting Type
90 deg Elbow
Hex Size
41 mm
Material
Steel
Material Construction
C1045 Steel
Maximum Operating Pressure
3600 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7202-NWO-FG-ORR Series
Thread Size
1-5/8-12 x 1-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Terry B on Dec 29, 2025, 6:23 AM
What size is that bigger thread, the B1? Just wanna make sure it'll fit my setup.
Answer by: Customer Support on Dec 30, 2025, 4:59 PM
This elbow features a B1 thread size of 1-5/8-12, according to the specs.
