Macho Metrico Oring 14x1.5 - Macho Jic

Description & Features

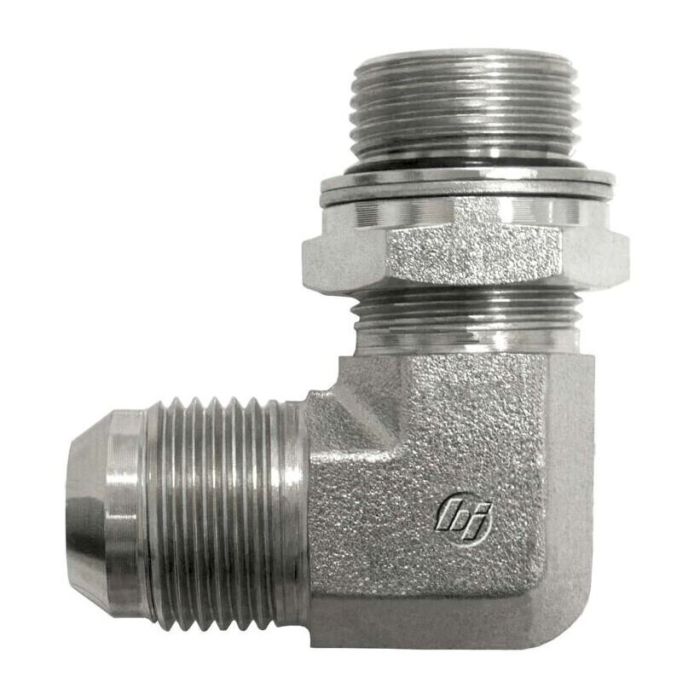

This forged steel 90-degree elbow features a Male JIC SAE 37-degree flare on one end and a Macho Metrico Oring 14x1.5 on the other. The adjustable Male Metric Adjustable ORR (O-Ring and Retaining Ring) end conforms to ISO 9974 standards. The 7/16-20 thread drill size B1 has a 4.4mm drill, while the M14X1.5 thread drill size B2 has a 7.5mm drill.

The fitting's O-Ring Seal is made of NBR. The Brennan Series is 7205-NWO-FG-ORR. The wrench flat is 19.0 mm.

SKU: 7205-04-14-NWO-FG

Supplier Part Number (MPN): 7205-04-14-NWO-FG

Specifications

Connection Size 1 1/4 in	Connection Size 2 14 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric O-ring	Dimension Standards ISO 9974, SAE J514	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 mm	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 3600 psi	O-ring Seal Material NBR	Operating Temperature -40 to 250 deg F	Series 7205-NWO-FG-ORR Series	Thread B1 Drill Dimensions 4.4 mm	Thread B2 Drill Dimensions 7.5 mm	Thread Size M14x1.5 x 7/16-20	Thread Specification B2 O-ring and Retaining Ring

Product Questions & Answers (1)

Question by: Debbie W on Dec 19, 2025, 11:04 AM

I'm hooking up some hydraulic lines and need a 90-degree elbow. Will this fit a standard JIC flare fitting on one side and a metric O-ring on the other?

Answer by: Customer Support on Dec 21, 2025, 6:14 AM

This elbow has a male JIC SAE 37-degree flare on one end and a Macho Metrico Oring 14x1.5 on the other, so if those are the connections you have, it should fit.
