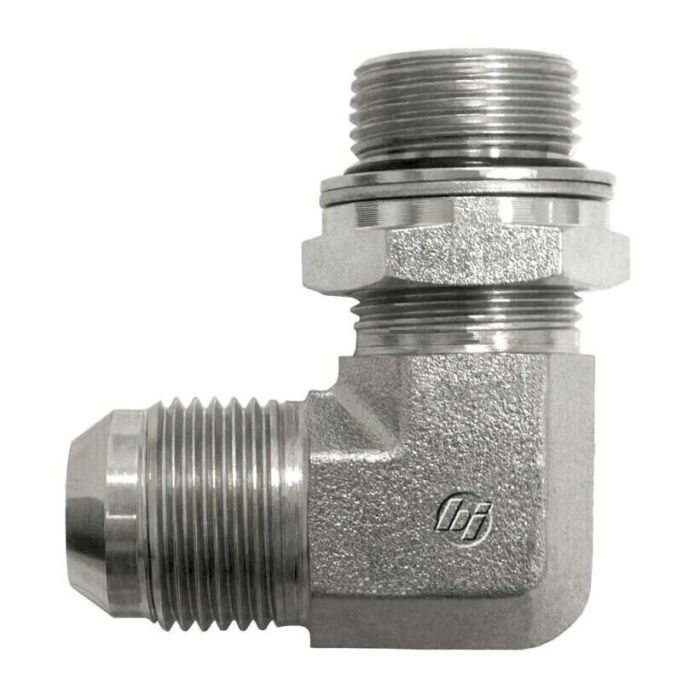

main product photo

Macho Metrico Oring 22x1.5 - Macho Jic

Ask A Question

Description & Features

This forged steel 90-degree elbow features a Macho Metrico Oring 22x1.5 and a Macho JIC connection. The B1 thread size is 3/4-16 with SAE J514 specification, while the B2 thread size is M22X1.5, meeting O-Ring and Retaining Ring specifications per ISO 9974.

Designed with a 27.0 mm hex size, this elbow utilizes an NBR O-ring seal material, ensuring reliable performance in demanding hydraulic applications. The B1 thread drill size is 9.9 mm, and the B2 thread drill size is 14.0 mm.

SKU: 7205-08-22-NWO-FG

Supplier Part Number (MPN): 7205-08-22-NWO-FG

Specifications

Connection Size 1
1/2 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric O-ring
Dimension Standards
ISO 9974, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
27 mm
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3600 psi
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
7205-NWO-FG-ORR Series
Thread B1 Drill Dimensions
9.9 mm
Thread B2 Drill Dimensions
14 mm
Thread Size
M22x1.5 x 3/4-16
Thread Specification B2
O-ring and Retaining Ring

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Norm H on Mar 29, 2026, 7:09 PM
What kind of hydraulic jobs is this elbow fitting best suited for?
Answer by: Customer Support on Mar 31, 2026, 6:12 AM
Designed for demanding hydraulic applications, this forged steel elbow provides a reliable 90-degree connection with its NBR O-ring seal. It's built to handle the pressures in those systems.
