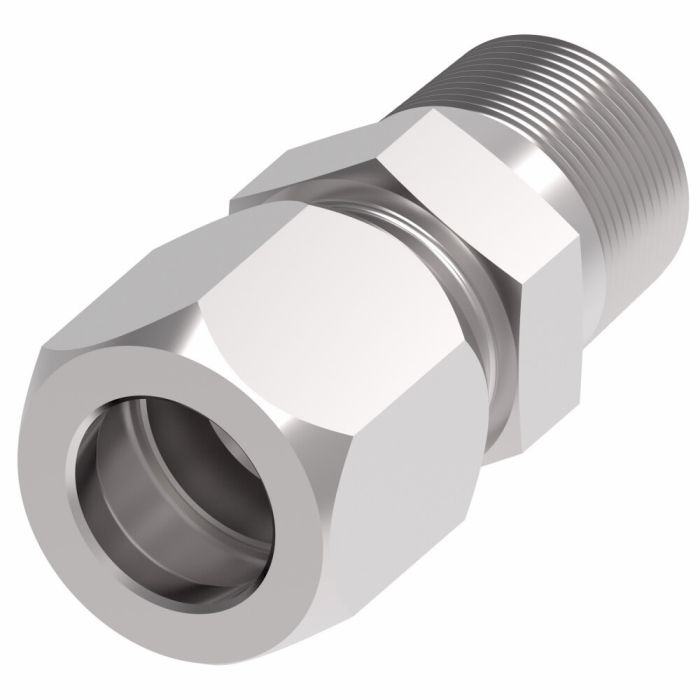

Danfoss / Eaton ERMETO Steel Male Pipe Connector

Description & Features

Built from carbon steel with Dura-Kote plating, this straight adapter delivers reliable corrosion resistance in demanding hydraulic, instrumentation, and chemical processing environments. The Danfoss / Eaton Ermeto Steel Male Pipe Connector features a 1-inch NPTF male end paired with a 1-inch line/hose/tube end, with a hex size of 1.5 inches for secure installation. Operating pressures exceed SAE standards, making it well-suited for high-pressure and high-vibration conditions. Certified to SAE 080102 and classified under UNSPSC 27121700, this fitting is part of an Ermeto product line offering hundreds of configuration styles to support a wide range of system design requirements.

SKU: 7205X16

Supplier Part Number (MPN): 7205X16

Alternate Part Numbers: C1HX72, MI-00322761, MINO-00925F66360

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male NPTF	Dimension Standards SAE 080102	Dimensions 7/8 in ID	Finish Dura-Kote™	Fitting Type Connector	Hex Size 1-3/8 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Series 7205X Series	Thread Size 1-11-1/2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
7205X4X4 7000 Series Ermeto Steel NPT Fitting	1/4 in	1/4 in	1/4-18	0.563 in
7205X8X8 7000 Series Ermeto Steel NPT Fitting	1/2 in	1/2 in	1/2-14	7/8 in
7205X12 7000 Series Ermeto Steel NPT Fitting	3/4 in	1/2 in	1/2-14	1-1/8 in
7205X5X4 7000 Series Ermeto Steel NPT Fitting	5/16 in	1/4 in	1/4-18	9/16 x 5/8 in
7205X6X6 7000 Series Ermeto Steel NPT Fitting	3/8 in	3/8 in	3/8-18	0.75 x 0.69 in
7205X4 7000 Series Ermeto Steel NPT Fitting	1/4 in	1/8 in	1/8-27	1/2 x 9/16 in
7205X10 7000 Series Ermeto Steel NPT Fitting	5/8 in	1/2 in	1/2-14	0.94 in
7205X6 7000 Series Ermeto Steel NPT Fitting	3/8 in	1/4 in	1/4-18	0.563 x 0.688 in
7205X8 7000 Series Ermeto Steel NPT Fitting	1/2 in	3/8 in	3/8-18	0.81 in
7205X2	1/8 in	1/8 in	1/8-27	0.437 in, 0.375 in
7205X2X4	1/8 in	1/8 in	1/4-18	0.38 x 0.56 in
7205X4X6	1/4 in	1/4 in	3/8-18	3/4 in
7205X4X8	1/4 in	1/4 in	1/2-14	0.97 in, 0.563 in
7205X5	5/16 in	5/16 in	1/8-27	9/16 x 5/8 in
7205X6X8	3/8 in	1/2 in	1/2-14	11/16 x 7/8 in
7205X8X4	1/2 in	1/4 in	1/4-18	0.9 in, 0.875 in
7205X8X12	1/2 in	1/2 in	3/4-14	7/8 x 1-1/4 in
7205X10X6	5/8 in	3/8 in	3/8-18	1 x 15/16 in
7205X12X8	3/4 in	3/4 in	3/4-14	1-1/8 in
7205X14	7/8 in	7/8 in	3/4-14	1-3/8 x 1-1/4 in
7205X16X12	1 in	1 in	3/4-14	1-3/8 x 1-1/2 in
7205X24	1-1/2 in	1-1/2 in	1-1/2-11-1/2	2 in, 2-1/4 in
