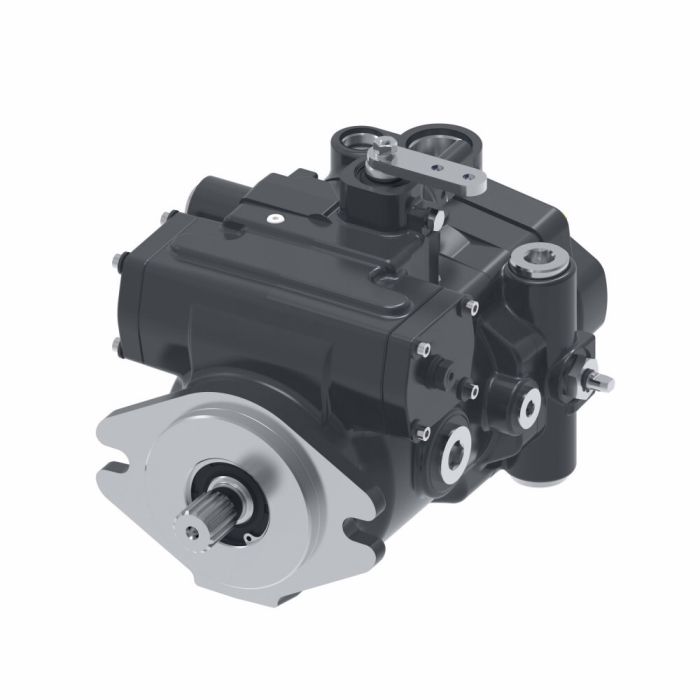

CESSNA ACGLALJ24DE1QQ0SB0AA00BCL0DAC

Ask A Question

Description & Features

Ideal for construction, agriculture, and other mobile applications, the CESSNA ACGLALJ24DE1QQ0SB0AA00BCL0DAC is a versatile medium-duty closed circuit pump. This variable displacement pump features an easy-to-operate sealed system, ensuring reliable performance across diverse settings. With displacements ranging from 20cc to 49cc (1.22 to 3.00 cu in), it offers flexibility to suit varying operational needs. Manufactured by Danfoss Power Solutions, this pump is compatible with truck and bus systems, as well as oil and gas applications.

Designed with a focus on efficiency and adaptability, the CESSNA pump's robust construction supports long-lasting use in demanding environments. Its compact width of 8.02 inches integrates seamlessly into existing setups, providing an effective solution for enhancing hydraulic capabilities. Whether in mobile or industrial settings, this pump serves as a reliable component in complex hydraulic systems.

SKU: 72400-LIY-04

Supplier Part Number (MPN): 72400-LIY-04

Specifications

Brand
Danfoss
Code Title
49.2 cc/rev [3.00 cu-in/rev] Servo Controlled Variable Displacement Pump
Control Servo Orifice S1 and S2
0.028 in Dia
Control Type
Solenoid
Design Code
D
Dimensions
12.67 in L x 8.02 in W x 8.54 in H
Drive Shaft Type
13 to 15 Teeth Splined
Housing Color
Black
Housing Material
Iron
Identification
Standard
Inlet Size
1-5/16-12
Inlet Type
SAE O-ring Straight Threaded
Input Shaft Rotation
Counterclockwise (Left-Hand)
Maximum Operating Pressure
4500 psi
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring Straight Threaded
Rotation Direction
Counter Clockwise (Left Hand)
Segment Code
C
Series
72400 Series
Shaft Pitch
16/32

Product Questions & Answers (1)

Question by: Rick S on Nov 3, 2025, 4:02 PM
Reckon this pump would hold up alright in some heavy construction work, like roadbuilding?
Answer by: Customer Support on Nov 4, 2025, 5:21 PM
It's designed for demanding environments, so construction, agriculture, even oil and gas applications are all suitable. Just be sure your setup stays within the pump's displacement range.
