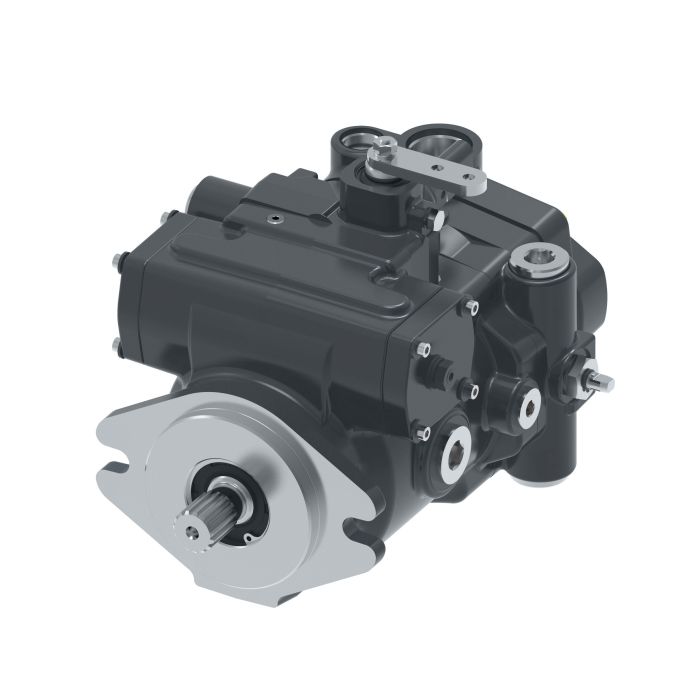

main product photo

CESSNA PISTON MOTOR

Ask A Question

Description & Features

Ideal for a range of applications including construction, agriculture, and oil and gas, the Danfoss Power Solutions CESSNA PISTON MOTOR is a versatile choice for mobile machinery. This variable displacement motor offers displacements from 20cc to 49cc (1.22 to 3.00 cu in), providing flexibility across multiple uses. It features an easy-to-operate sealed system, ensuring reliable performance under demanding conditions.

Designed for medium duty closed circuit pump servo control, this motor is part of the 72400 Series by Danfoss. Its robust design and adaptability make it suitable for trucks, buses, and other mobile platforms requiring dependable hydraulic power solutions.

SKU: 72400-RGH-04

Supplier Part Number (MPN): 72400-RGH-04

Specifications

Brand
Danfoss
Auxiliary Port Size and Location
3/4-16 UNF-2B SAE O-ring Port - Left (C1)\u0026 Right (C2) Sides (Housing), Left Side Plugged
Control Assembly
Manual Control, High-Gain, No Additional Features (+/-17 Active Control Shaft Rotation)
Control Type
Servo
Cooling Method
Heat Exchanger
Design Code
D
Dimensions
11.24 in L x 8.02 in W x 9.08 in H
Drive Shaft Type
Splined
Housing Color
Black
Housing Finish
Painted
Housing Material
Iron
Inlet Size
1-1/16-12
Inlet Type
SAE ORB
Input Shaft
15-Tooth 16/32 External, Diameter 24.98 .984, Shaft Extension 46 1.81
Main Ports Size Location
1-1/16-12 UN-2B SAE O-ring port (A B) - Left Side
Maximum Operating Pressure
5500 psi
Mounting Type
SAE B 2-Bolt Flange
nmfc
125820
Outlet Size
1-1/16-12
Outlet Type
SAE ORB
Output Shaft
41-Tooth 48/96 External, Diameter 22.22 .875 Accepts Shaft Extension 24.4 .96
Relief Valve Setting Port A
379.2 bar, 5500 lbf/sq-in
Relief Valve Setting Port B
379.2 bar, 5500 lbf/sq-in
Rotation Direction
Clockwise
Series
72400 Series

Product Questions & Answers (1)

Question by: Kurt H on Oct 23, 2025, 2:36 PM
Just want to make sure this motor is gonna work for a closed circuit setup on my farm equipment. Specs say it's for that, right?
Answer by: Customer Support on Oct 25, 2025, 6:54 AM
Designed for medium duty closed circuit pump servo control, this Cessna piston motor is part of the 72400 Series by Danfoss, making it suitable for your application.
