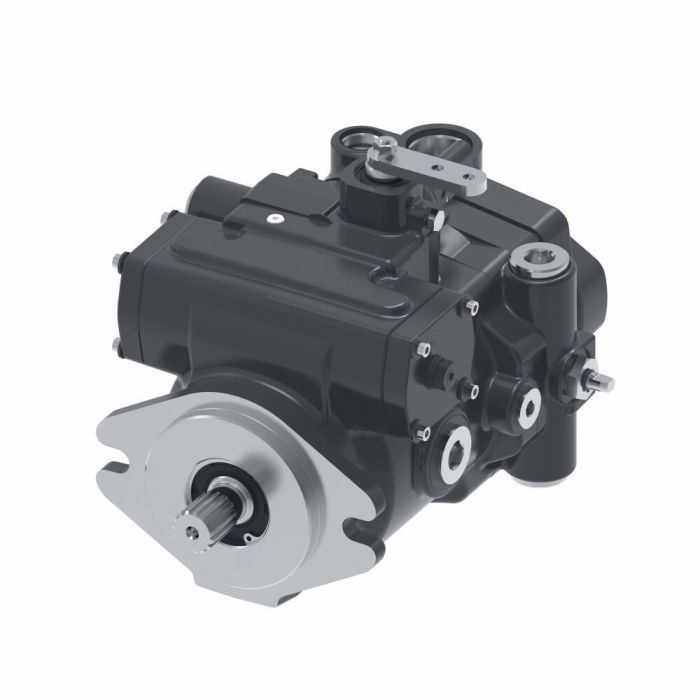

3.00 CID Servo ControlLE D Piston Pump S

Ask A Question

Description & Features

Designed for demanding mobile environments, this variable displacement, servo-controlled piston pump covers a displacement range of 20cc to 49cc (1.22 to 3.00 cu in), making it well-suited for construction, agriculture, oil and gas, and truck and bus applications. The 3.00 CID Servo Controlled Piston Pump S is part of the Danfoss/Eaton 72400 Series medium duty closed circuit platform.

The sealed system design keeps operation straightforward, reducing complexity in mobile hydraulic circuits. Variable displacement capability allows the pump to adapt across a range of flow demands, and the flexible architecture supports integration into multiple application types within closed circuit configurations.

SKU: 72400-RPR-04

Supplier Part Number (MPN): 72400-RPR-04

Specifications

Brand
Danfoss
Code Title
49.2 cc/rev [3.00 cu-in/rev] Servo Controlled Variable Displacement Pump
Control Servo Orifice S1 and S2
0.028 in Dia
Control Type
Manual
Design Code
D
Dimensions
10.93 in L x 8.53 in W x 8.38 in H
Drain Port Size and Location
Thru Drain Into Rear Auxiliary Flanged (D3)
Drive Shaft Type
15 to 35 Teeth Splined
Housing Color
Black
Housing Material
Iron
Identification
Standard
Inlet Size
1-5/16-12
Inlet Type
SAE O-ring Straight Threaded
Maximum Operating Pressure
5000 psi
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring Straight Threaded
Rotation Direction
Clockwise (Right Hand), Counter Clockwise
Series
72400 Series
Shaft Pitch
16/32
Special Features
Left-Hand Neutral Adjustment, Polyacrylate Drive Shaft Seal

Product Questions & Answers (1)

Question by: Terry M on Oct 31, 2025, 7:49 AM
Is this pump used for open or closed loop systems?
Answer by: Customer Support on Nov 1, 2025, 9:19 PM
This servo controlled piston pump is part of a closed circuit platform, making it well-suited for applications using that configuration.
