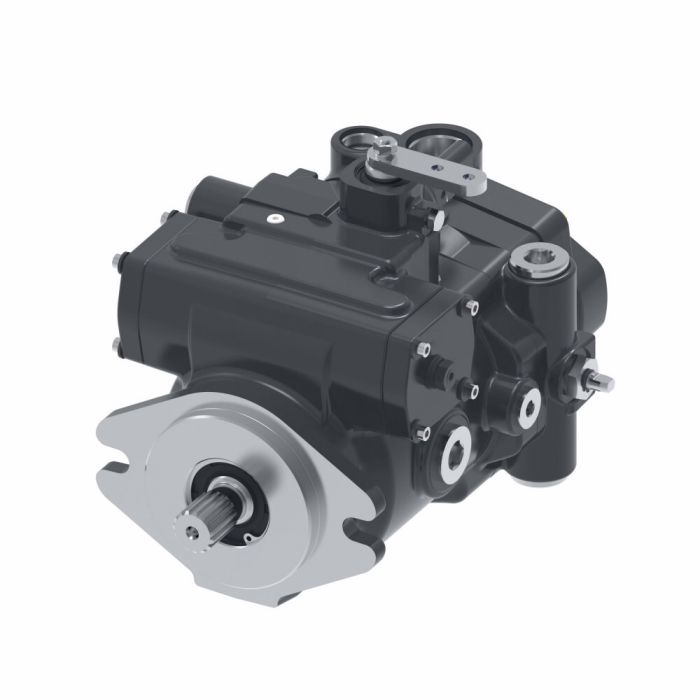

2.48 SERVO PUMP AADRALK24EE1QQ0P000A00ADD0D

Ask A Question

Description & Features

The 2.48 Servo Pump AADRALK24EE1QQ0P000A00ADD0D, a versatile component from Eaton Char-Lynn and Danfoss Power Solutions, is engineered for robust performance in demanding mobile applications such as construction, agriculture, and oil and gas sectors. This variable displacement pump features a compact design with a displacement range from 20cc to 49cc (1.22 to 3.00 cu in), making it adaptable to a wide array of machinery and equipment.

Operators will appreciate the easy-to-operate sealed system, designed to ensure reliable functionality and system integrity. A special lighter spring design allows for low charge pressure, enhancing efficiency and reducing operational stress. Measuring 8.02 inches in width, this pump offers a balance of size and power optimal for integration into mobile systems.

SKU: 72400-SBK-04

Supplier Part Number (MPN): 72400-SBK-04

Specifications

Brand
Danfoss
Code Title
40.6 cc/rev [2.48 cu-in/rev] Servo Controlled Variable Displacement Pump
Control Servo Orifice S1 and S2
0.028 in Dia
Control Type
Port Plate
Design Code
D
Dimensions
12.67 in L x 8.02 in W x 8.52 in H
Drive Shaft Type
13 to 15 Teeth Splined
Housing Material
Iron
Inlet Size
1-5/16-12
Inlet Type
SAE O-ring Straight Threaded
Input Shaft Rotation
Counterclockwise (Right-Hand)
Maximum Operating Pressure
4500 psi
Mounting Type
2-Bolt Flanged
nmfc
125820
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring Straight Threaded
Rotation Direction
Clockwise (Right Hand), Counter Clockwise
Segment Code
C
Series
72400 Series
Shaft Pitch
16/32

Product Questions & Answers (1)

Question by: Rick C on Apr 3, 2025, 5:34 PM
what kind of applications is this pump built for, like can it handle farm equipment or is it more for construction stuff?
Answer by: Customer Support on Apr 4, 2025, 6:55 PM
Both, actually. The 72400 Series covers construction, agriculture, truck and bus, oil and gas, and other mobile applications, so it moves around pretty well across different equipment types. It runs as a variable displacement closed circuit piston pump, which makes it a solid fit for mobile hydraulic systems that need adjustable flow rather than a fixed output.
