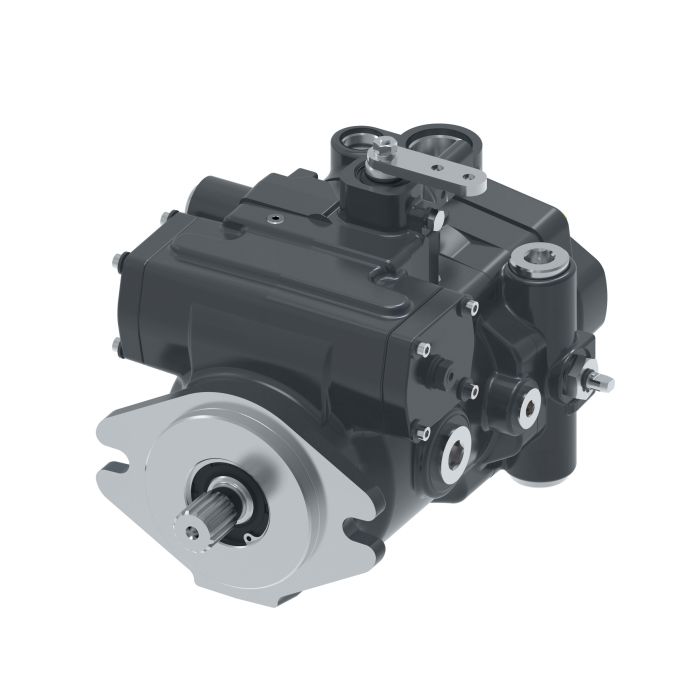

Danfoss / Eaton ACGRCAA24EE2BBAEC0CA00B000D Servo

Ask A Question

Description & Features

The variable displacement servo by DANFOSS POWER SOLUTIONS II LLC (CHAR-LYNN) is engineered specifically for use in heavy-duty sectors including harvester equipment construction machinery forestry turf care paving and industrial equipment.

This product offers high precision without the needs for adjustable ends or adjustment capabilities. It is also free of a battery blades calibrated settings case check valve color coding diode and switch connector. No electrical flags or thread sealant are included ensuring an unembellished and reliable design.

It is designed within the ICC Mobile - CC Piston Pumps category and features a width of 12.06 inches. The servo does not include machine mountable features mandrel or any special features that could distract from its primary functionality.

Supplier Part Number: 72400-SHE-04

Specifications

Brand
Danfoss
Aux Mounting Features Rear
[2-Bolt A] SAE Flanged Series 82-2
Control Assembly
Electronic Proportional Control 12 VDC without Electronic Driver
Control Supply Orifice P
0.044 in Dia
Control Type
Electronic Proportional
Design Code
D
Dimensions
12.44 in L x 12.06 in W x 8.53 in H
Drain Port Size and Location
1-1/16-12 Un-2B SAE O-ring Port - Left (D1) and Right (D2) Sides, Left Side Plugged, Thru Drain Into Rear Auxiliary Flanged (D3)
Drive Shaft Type
9 to 13 Teeth Splined
Housing Color
Black
Housing Material
Iron
Identification
Standard
Inlet Size
1-5/16-12
Inlet Type
SAE O-ring Straight Threaded
Input Shaft Rotation
Counterclockwise (Right-Hand)
Mounting Type
2-Bolt Flanged
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring Straight Threaded
Rotation Direction
Clockwise (Right Hand), Counter Clockwise
Series
72400 Series
Shaft Pitch
16/32

Product Questions & Answers (2)

Question by: Warren T on Oct 21, 2025, 4:50 PM
got a machine running a Mobile CC piston pump, is this the right kind of servo or am i lookin at the wrong thing
Answer by: Customer Support on Oct 23, 2025, 12:37 PM
Built for the Mobile CC piston pump category, this unit is a variable displacement servo meant to go with that pump family and style of setup.
Question by: Freddie W on Dec 19, 2025, 11:11 AM
What kind of equipment is this servo actually built for? Got a harvester sitting in the shop and trying to figure out if this fits the bill.
Answer by: Customer Support on Dec 21, 2025, 7:50 AM
Harvester equipment is one of the primary applications this servo was engineered for. Beyond that, it also covers construction machinery, forestry, turf care, paving, and general industrial equipment. So if you've got a harvester needing a variable displacement servo, you're looking at the right part.
