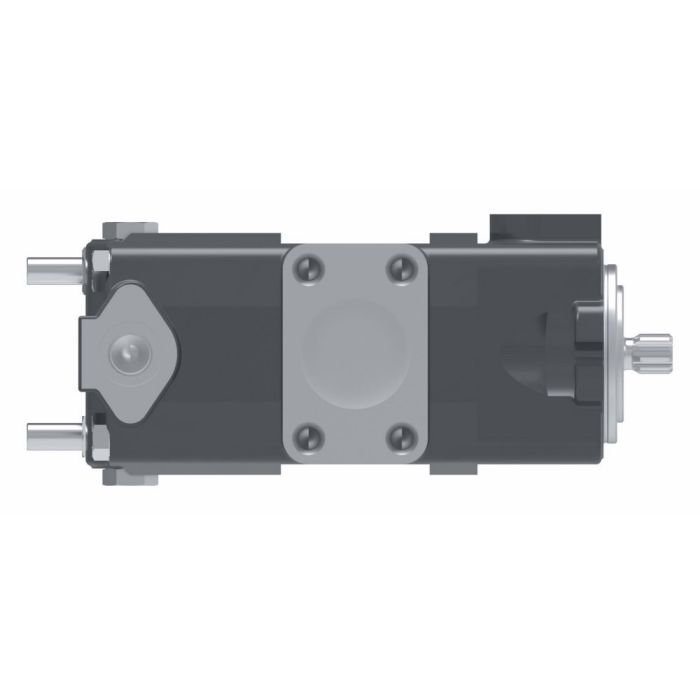

main product photo

VICKERS V20201F9S7S1AA30L-167

Ask A Question

Description & Features

Designed for power steering, small industrial units, and light press applications, the Vickers V20201F9S7S1AA30L-167 is a V2020 Series vane pump built for reliable performance in compact hydraulic systems. The cast iron housing provides structural durability, while Buna-N seals offer broad compatibility with common hydraulic fluids.

A pressure-balanced, modular 12-vane design reduces noise and minimizes flow pulsation during operation. The V2020 Series is available across a wide range of displacements, making it straightforward to match pump output to specific system requirements without over-specifying. At 6.88 inches wide, the unit fits within the space constraints typical of smaller industrial machinery.

Manufactured under the Vickers brand by Danfoss/Eaton, this pump reflects the engineering standards associated with the V10 and V20 Series product line.

SKU: 725AR00049A

Supplier Part Number (MPN): 725AR00049A

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Design Code
30
Dimensions
11.34 in L x 6.88 in W x 5.32 in H
Displacement
1.81 cu-in Shaft, 1.39 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
9 gpm Shaft, 7 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Outletcover Port Orientation
Outlet 2: Opposite to Inlet Port, Outlet 1: Opposite to Inlet Port
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
Buna-N
Series
V2020 Series
Speed Rating
2800 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Donna F on Mar 20, 2026, 8:17 PM
Is this the right pump for replacing a Vickers V2020 on an older hydraulic press? Just want to be sure before I order.
Answer by: Customer Support on Mar 22, 2026, 6:34 AM
This V2020 series vane pump is designed to be a reliable replacement in small industrial units and light press applications, so it should work well as a direct replacement, assuming the original specifications align.
