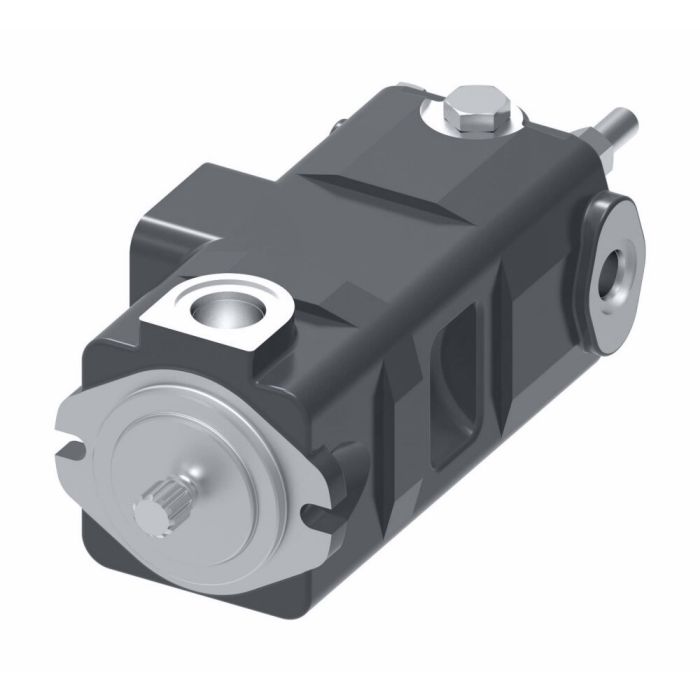

main product photo

VICKERS V20201F12S7S11CC30R-167

Ask A Question

Description & Features

The Danfoss Vickers V2020 series vane pump offers a modular 12-vane design that is pressure-balanced to minimize noise and flow pulsation. Crafted from durable cast iron it is suitable for applications such as power steering and industrial small units and presses. The design includes Buna-N seals ensuring robust performance and reliability under various operational conditions.

The pump provides a wide range of available displacements making it versatile for different industrial needs. This feature reduces mechanical strain and extends the pump's operational life.

ECCN: EAR99

Supplier Part Number: 725AR00052A

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Dimensions
10.655 in L x 6.88 in W x 5.32 in H
Displacement
2.38 cu-in Shaft, 1.39 cu-in Cover
Drive Shaft Type
13 Teeth
Flow Rate
12 gpm Shaft, 7 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2200 psi Shaft, 2500 psi Cover
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Series
V2020 Series
Shaft Pitch
16/32
Special Feature Suffix
Ring and Rotor Clearances to Match 0.0015 to 0.0017 at Cover End
Speed Rating
2400 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (2)

Question by: Darryl J on Oct 10, 2025, 11:38 AM
got a machine that’s pretty touchy about pump noise. is this V2020 vane pump built to run smoother than the old style ones?
Answer by: Customer Support on Oct 11, 2025, 7:26 PM
With its pressure-balanced, modular 12-vane design, this pump is meant to cut down on noise and flow pulsation compared to less refined vane setups.
Question by: Neal H on Nov 15, 2025, 5:59 PM
What kind of hydraulic jobs is this V2020 series pump best suited for? I'm thinkin' about power steerin' mostly.
Answer by: Customer Support on Nov 16, 2025, 7:20 PM
This Danfoss Vickers V2020 vane pump works well in power steering systems, plus smaller industrial units and presses.
