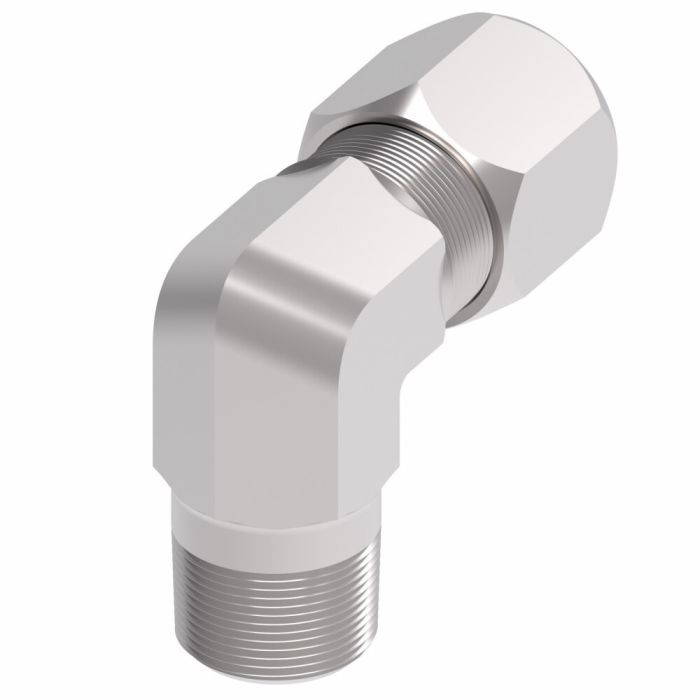

Designed for demanding hydraulic and industrial fluid system routing, the Danfoss / Eaton Ermeto Steel 90 Male Pipe Elbow provides a 90-degree directional change between a 3/4 in. NPTF male end and a female line/hose/tube connection. Constructed from carbon steel, this elbow adapter is rated for higher operating pressures above SAE standards, making it well suited for applications that exceed conservative service conditions.
Dura-Kote plating provides superior corrosion resistance for extended service life in harsh environments. The adapter meets Ms, Asme, SAE 080202, and Asa certifications, supporting use across a broad range of industrial fluid power applications. With a hex size of 1.5 in. and a drop dimension of 1.79 in., this fitting integrates cleanly into tight routing configurations. Aeroquip brand design flexibility means compatible styles are available across hundreds of configurations.
SKU: 7405X16X12
Supplier Part Number (MPN): 7405X16X12
|
Alternate Part Numbers
MINO-00015X07936
|
Application
varied applications far exceeding the conservative conditions
|
Certifications
MS|ASME|SAE 080202|ASA
|
Drop Dimension
1.79
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.75
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
1.50
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.50
|
Sub Brand
None
|
Supplier Part Number
7405X16X12
|
Product Weight
0.72 lbs
|
