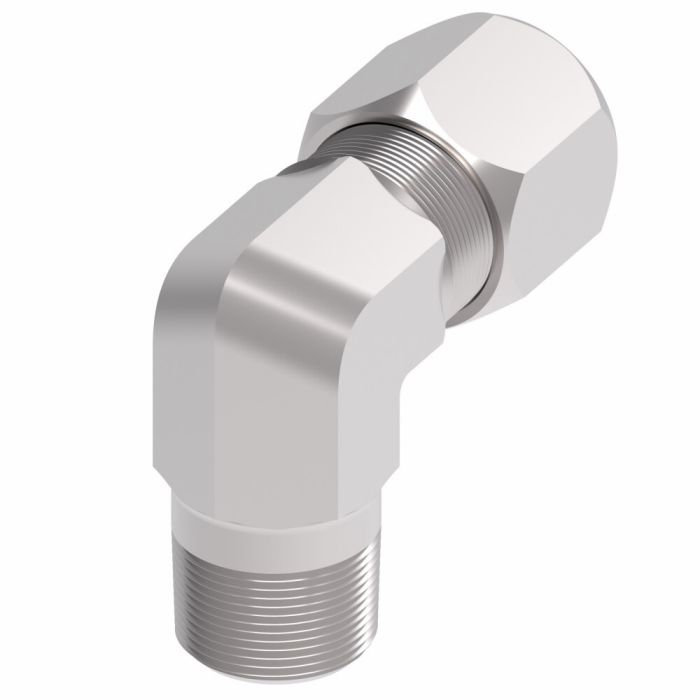

Designed for industrial hydraulic systems requiring a direction change in fluid routing, the Danfoss / Eaton Ermeto Steel 90 Male Pipe Elbow connects a 3/8" NPTF male end to a 9/16" line, hose, or tube female end in a compact 90° configuration. Constructed from carbon steel, it carries certifications to ASME, SAE 080202, ASA, and MS standards, and is rated for higher operating pressures that exceed standard SAE requirements.
Dura-Kote plating provides corrosion resistance suited to demanding service environments across varied industrial applications. The adapter is part of the Aeroquip product line under Eaton's Ermeto range, which offers considerable design flexibility across hundreds of available styles and configurations. With a hex size of 1.06" and a drop dimension of 1.24", the fitting integrates readily into space-conscious assemblies.
SKU: 7405X6X6
Supplier Part Number (MPN): 7405X6X6
Alternate Part Numbers: MI-00322383, MINO-00925F66248
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-00322383, Alternate Part Number MINO-00015X07947, Alternate Part Number MINO-00925F66248
Application
varied applications far exceeding the conservative conditions
Certifications
ASME|SAE 080202|ASA|MS
Drop Dimension
1.24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.38
End Size 2
0.56
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
