DANFOSS / EATON TUBE FITTING. 7000 SERIES ERMETO. STEEL. FLARELESS. 3/

Description & Features

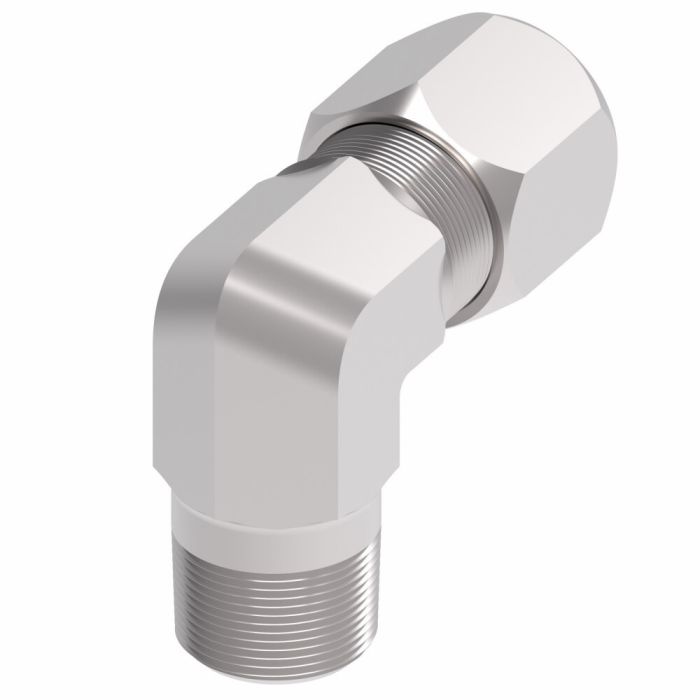

A 90-degree elbow adapter connecting a 3/8 in. NPTF male end to a 3/4 in. female line/hose/tube end, this Danfoss / Eaton Tube Fitting 7000 Series Ermeto is manufactured from carbon steel and designed for flareless tube connections in demanding hydraulic applications.

Part of Eaton Aeroquip's Ermeto 7000 Series, the fitting features Dura-Kote plating for corrosion resistance and is rated to perform at operating pressures exceeding SAE standards. Certified to ASA, SAE 080202, MS, and ASME standards, it suits a broad range of industrial hydraulic conditions. The 0.87 in. hex and compact drop dimension of 1.24 in. support installation in space-constrained assemblies.

With hundreds of available styles in the Ermeto series, this elbow adapter offers configuration flexibility across varied hydraulic circuit layouts.

SKU: 7405X8

Supplier Part Number (MPN): 7405X8

Alternate Part Numbers: C1JB64, MI-00322395, MINO-00925F66251

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type MNPT, Tube	Connection Type 1 Tube OD	Connection Type 2 Male NPTF	Dimension Standards SAE 080202	Drop Dimensions 1.24 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 0.87 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Series 7405X Series	Thread Size 3/8-18	Tube OD 1/2 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
7405X5 7000 Series Ermeto To Male NPT 90 Elbow	5/16 in	1/8 in	1/2-20	0.55 in, 0.62 in
7405X12 7000 Series Ermeto To Male NPT 90 Elbow	3/4 in	3/4 in	1-1/16-12	1.06 in, 1.25 in
7405X5X4 7000 Series Ermeto To Male NPT 90 Elbow	5/16 in	1/4 in	1/2-20	0.55 in, 0.62 in
7405X4 7000 Series Ermeto To Male NPT 90 Elbow	1/4 in	1/8 in	7/16-20
7405X10 7000 Series Ermeto To Male NPT 90 Elbow	5/8 in	1/2 in	7/8-14	0.86 in, 1 in
7405X6 7000 Series Ermeto To Male NPT 90 Elbow	3/8 in	1/4 in	9/16-18	0.55 in, 1.06 in
7405X3	3/16 in	1/8 in	5/16-24, 3/8-24	0.44 in, 0.43 in
7405X4X4	1/4 in	1/4 in	7/16-20	0.55 in, 0.56 in
7405X6X2	3/8 in	1/8 in	9/16-18	0.55 in, 1.06 in
7405X6X6	3/8 in	3/8 in	9/16-18	1.06 x 0.74 in
7405X6X8	3/8 in	1/2 in	9/16-18	0.86 in, 1.06 in
7405X8X4	1/2 in	1/4 in	3/4-16	0.74 in, 0.87 in
7405X8X8	1/2 in	1/2 in	3/4-16	0.86 in, 0.87 in
7405X10X6	5/8 in	3/8 in	7/8-14	0.86 in, 1 in
7405X12X8	3/4 in	1/2 in	1-1/16-12	1.06 in, 1.25 in
7405X14	7/8 in	3/4 in	1-3/16-12	1.25 in, 1.37 in
7405X16	1 in	1 in	1-5/16-12	1.26 in, 1.5 in
7405X16X12	1 in	3/4 in	1-5/16-12	1-1/2 x 1-1/4 in
7405X20	1-1/4 in	1-1/4 in	1-5/8-12	1.61 in, 2 in
7405X24	1-1/2 in	1-1/2 in	1-7/8-12	1.96 in, 2.25 in

Product Questions & Answers (1)

Question by: Johnny R on Apr 8, 2025, 12:04 PM

what kind of connection does this fitting make exactly, is it a male thread on one end going into a tube on the other?

Answer by: Customer Support on Apr 10, 2025, 11:01 AM

One end is a male NPTF thread, and the other end accepts a tube or hose line using a flareless bite-style connection. The 90 degree angle between them makes it useful when you need to change direction in a tight hydraulic connections run without adding extra bends or unions. The NPTF thread is a dry-seal design, so it forms a pressure-tight joint at the threads themselves rather than relying on a sealant alone.
