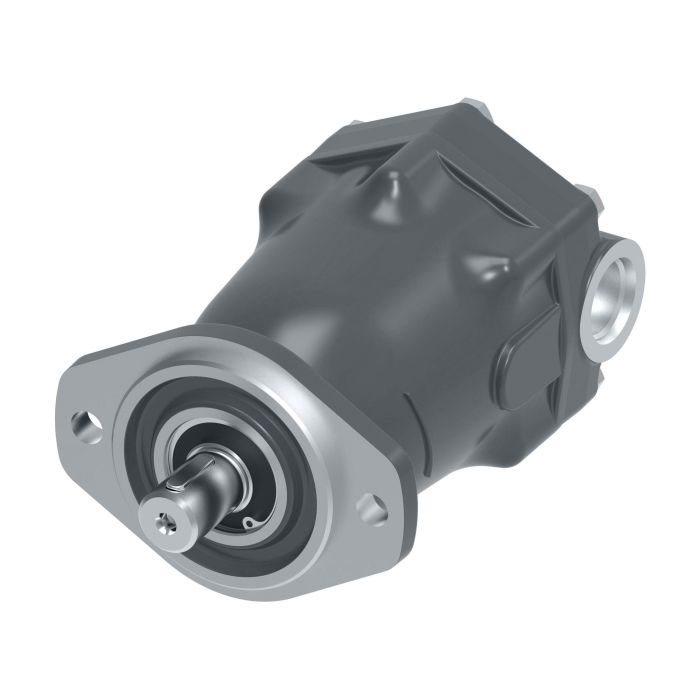

DANFOSS / EATON CESSNA .75 CU PISTON MOTOR

Description & Features

This DANFOSS / EATON CESSNA .75 CU PISTON MOTOR is a medium-duty fixed motor designed for demanding mobile hydraulic applications.

Featuring advanced design elements and a through-drive option, this axial piston motor is easy to configure and service. Common applications include harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers. Constructed from durable cast iron, it delivers a torque rating of 68.55 newton meters and a flow rate of 66.37 liters per minute.

SKU: 74111-DAC-01

Supplier Part Number (MPN): 74111-DAC-01

Alternate Part Numbers: C1KD75

Specifications

Brand Danfoss	Color Blue	Design Code B	Dimensions 8.57 in L x 5.12 in W x 4.72 in H	Housing Material Aluminum	Mounting Type 2-Bolt Flanged	nmfc 125820	Paint Primer	Port Location Upper Rear	Port Type UN-2B, SAE O-ring	Rotation Direction Reversible	Segment Code B	Series 741 Series	Shaft Size 0.87 in Dia x 1.62 in L	Shaft Type Splined

Product Questions & Answers (1)

Question by: Travis J on May 3, 2025, 4:19 PM

Can this motor handle being run pretty steady, or is it more for short bursts?

Answer by: Customer Support on May 5, 2025, 12:25 PM

This Danfoss/Eaton Cessna motor is designed for medium-duty mobile hydraulic applications, so it should hold up well under continuous use in the right conditions.
