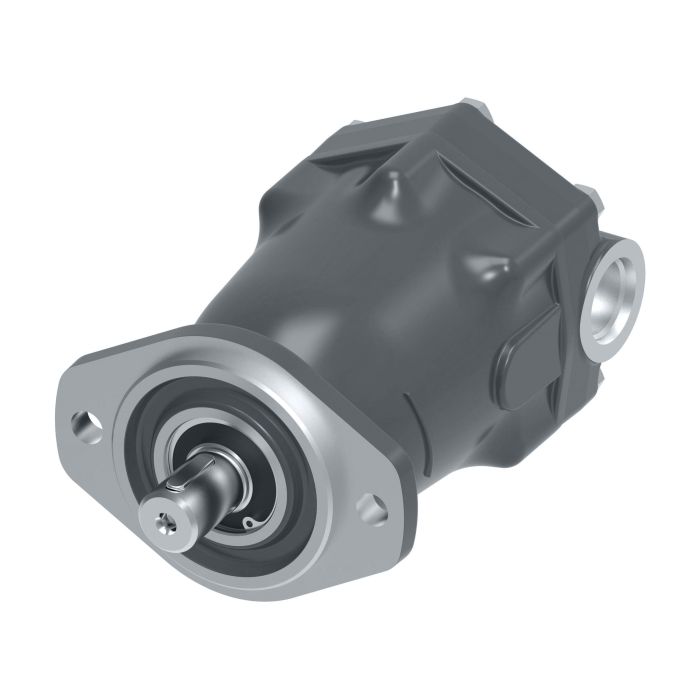

main product photo

Danfoss / Eaton-1.24 Fixed Displacement Piston MOTO

Ask A Question

Description & Features

Designed for medium-duty mobile hydraulic applications, this cast iron axial-piston motor from Danfoss Power Solutions delivers a torque rating of 113.14 Nm and supports flow rates up to 87.74 litres per minute. The 5,000 RPM speed rating (applicable to the 20.3 cc displacement configuration) makes it well suited to demanding drive and lift applications.

The Danfoss / Eaton-1.24 Fixed Displacement Piston Motor is commonly used in harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers. A through-drive option is available, and the design supports straightforward configuration and servicing in the field.

Fixed displacement construction provides consistent, predictable output, practical for applications where variable control is not required and reliable torque delivery is the priority.

SKU: 74118-DCD-01

Supplier Part Number (MPN): 74118-DCD-01

Specifications

Brand
Danfoss
Color
Black
Dimensions
8.57 in L x 5.12 in W x 4.72 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Rotation Direction
Reversible
Segment Code
B
Series
741 Series
Shaft Size
7/8 in Dia x 1.62 in L
Shaft Type
Straight Keyed

Product Questions & Answers (1)

Question by: Danny F on Oct 6, 2025, 7:31 AM
Reckon this motor could handle bein' outside in all weather? We get some nasty winters here.
Answer by: Customer Support on Oct 7, 2025, 8:58 PM
This motor is made from cast iron, which offers good durability for mobile hydraulic applications. While the listing doesn't specify an exact environmental rating, cast iron provides a solid level of protection in typical outdoor conditions found in the applications listed, such as harvesters and log skidders.
