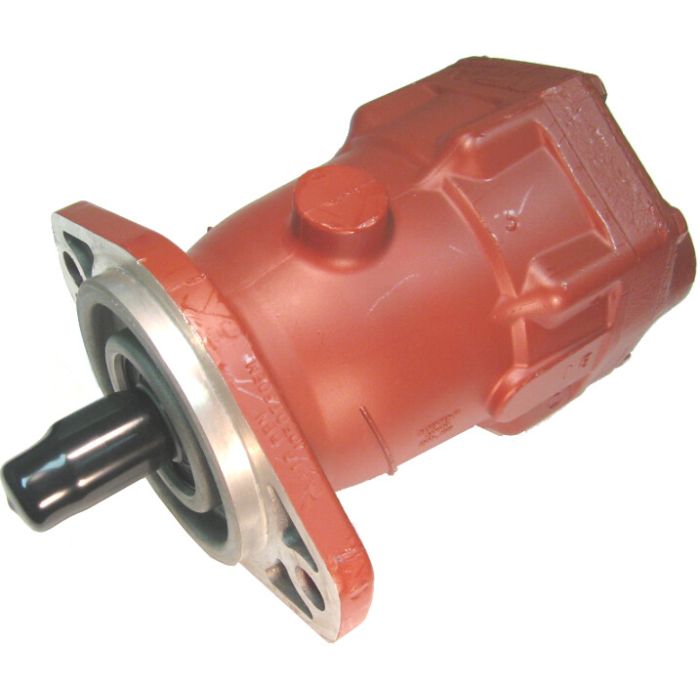

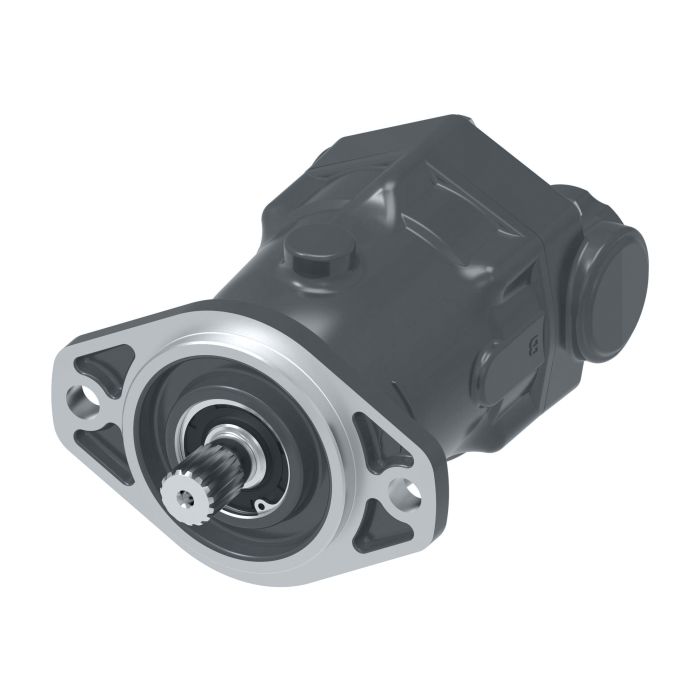

Ideal for demanding applications such as harvesters, sprayers, and log skidders, the Eaton Char-Lynn Medium Duty Fixed Piston Motor features a robust cast iron construction for durability and reliability. With a displacement of 2.01 cubic inches per revolution, it efficiently delivers a torque rating of 183.36 newton meters, making it suitable for various industrial tasks including fan drives, lawn tractors, and lift trucks.
This motor includes advanced design features that simplify configuration and service, along with a through-drive option for enhanced versatility. The motor supports a flow rate of up to 142.43 liters per minute. It comes equipped with a .500-20 UNF-2B SAE O-Ring port, which is plugged and accepts a speed sensor, and a polyacrylate drive shaft seal to ensure optimal performance.
SKU: 74315-DAH
Supplier Part Number (MPN): 74315-DAH
Alternate Part Numbers: C1KD79
|
Alternate Part Numbers
C1KD79
|
Application
Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers
|
Brand
Danfoss – Hydraulics
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
Features
Advanced design features|Through drive option|Easy to configure and service
|
Flow Rate1
142.43 litre per minute
|
ICC
HS MP Fixed Axial-Piston Motors
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
125820
|
Product Material
Cast Iron
|
Product Width
6.88
|
Special Features
.500-20 UNF-2B SAE O-Ring Port - Top, Plugged (Housing) Accepts Speed Sensor; Polyacrylate Drive Shaft Seal
|
Sub Brand
None
|
Supplier Part Number
74315-DAH
|
Torque Rating
183.36 newton metre
|
Torque Rating
183.36 newton metre
|
Product Weight
20.00 lbs
|
