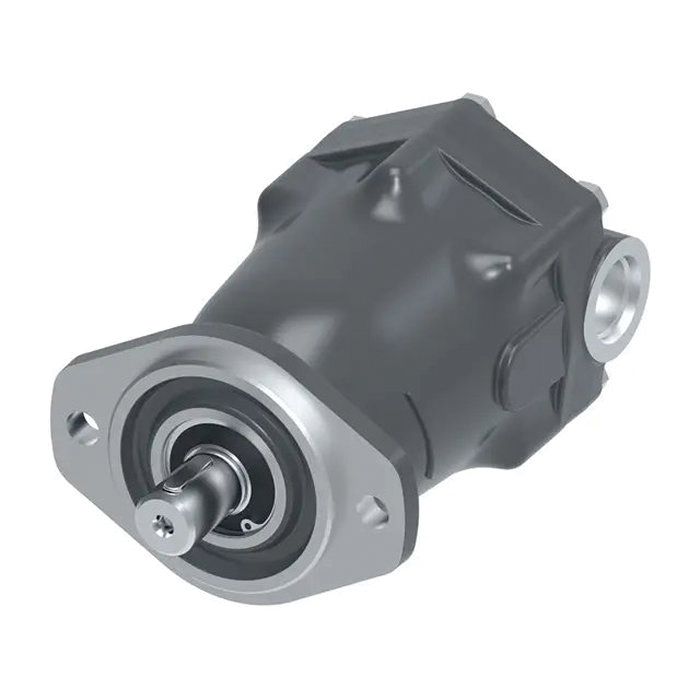

DANFOSS / EATON-2.48 CID Fixed Piston Motor Assy

Ask A Question

Description & Features

Designed for medium-duty hydraulic applications, the Danfoss / Eaton 74315-DAP Fixed Piston Motor Assembly delivers a torque rating of 183.36 Nm and a maximum flow rate of 142.43 litres per minute. With a displacement of 2.48 CID, it is well suited for use in harvesters, sprayers, log skidders, lift trucks, scissor lifts, fan drives, lawn tractors, and bark removers.

The assembly includes a shuttle valve and back-pressure valve set at 6.89–10.34 bar (100–150 lbf/in²), along with a 71.98 mm maximum diameter pilot on the mounting flange with O-ring. Reinforced bearings support increased side load capacity. A through-drive option is available, and the design allows for straightforward configuration and servicing in the field.

SKU: 74315-DAP

Supplier Part Number (MPN): 74315-DAP

Specifications

Application
Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Advanced design features|Through drive option|Easy to configure and service
Flow Rate1
142.43 litre per minute
ICC
HS MP Fixed Axial-Piston Motors
Language
English
Net Pack Quantity Units
EA
NMFC
125820
Product Width
6.88
Special Features
Shuttle Valve And Back-Pressure Valve Set At 6.89-10.34 Bar [100-150 Lbf/In2]; 71.98 [2.834] Max Diameter Pilot On Mounting Flange With O-Ring; Bearings For Increased Side Load
Sub Brand
None
Supplier Part Number
74315-DAP
Torque Rating
183.36 newton metre
Torque Rating
183.36 newton metre
Product Weight
20.00 lbs

Related Documents

Product Questions & Answers (1)

Question by: Dwayne J on Aug 16, 2025, 1:18 PM
Is this motor good for somethin' like a log skidder, or is it too lightweight?
Answer by: Customer Support on Aug 18, 2025, 6:44 AM
This motor is well-suited for log skidders, as well as harvesters, sprayers, lift trucks, scissor lifts, fan drives, lawn tractors, and even bark removers.
