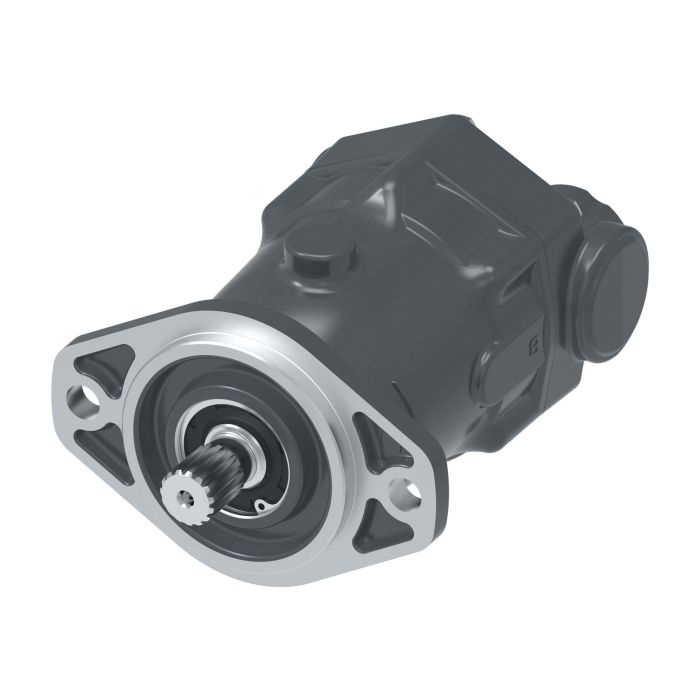

Built for demanding mobile and industrial hydraulic applications, the DANFOSS / EATON-2.48 CID Fixed Piston Motor Assy is a medium-duty axial-piston motor designed to deliver reliable torque output across a wide range of equipment types. Its cast iron construction supports durability in field-intensive environments such as harvesters, log skidders, lift trucks, scissor lifts, fan drives, and bark removers.
This motor features unidirectional left-hand (CCW) rotation with an anticavitational check valve and a Viton drive shaft seal, a configuration suited to systems requiring controlled directional performance and long seal service life. A through-drive option adds installation flexibility, and the design supports straightforward configuration and servicing in the field.
Rated at 183.36 Nm of torque with a maximum flow rate of 142.43 litres per minute, this fixed displacement motor is well-matched to applications where consistent speed and torque are prioritized over variable output. The 2.48 CID displacement and 6.88-inch width make it a compact but capable choice for mid-range hydraulic circuits.
SKU: 74315-LAB
Supplier Part Number (MPN): 74315-LAB
|
Alternate Part Numbers
MINO-00287X00022
|
Application
Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers
|
Brand
Danfoss – Hydraulics
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
Features
Advanced design features|Through drive option|Easy to configure and service
|
Flow Rate1
142.43 litre per minute
|
ICC
HS MP Fixed Axial-Piston Motors
|
Language
English
|
Net Pack Quantity Units
EA
|
Product Material
Cast Iron
|
Product Width
6.88
|
Special Features
Unidirectional Lh (CCW) Rotation With Anticavitational Check Valve With Viton Drive Shaft Seal
|
Sub Brand
None
|
Supplier Part Number
74315-LAB
|
Torque Rating
183.36 newton metre
|
Torque Rating
183.36 newton metre
|
Product Weight
20.00 lbs
|
