CESSNA PUMP

Description & Features

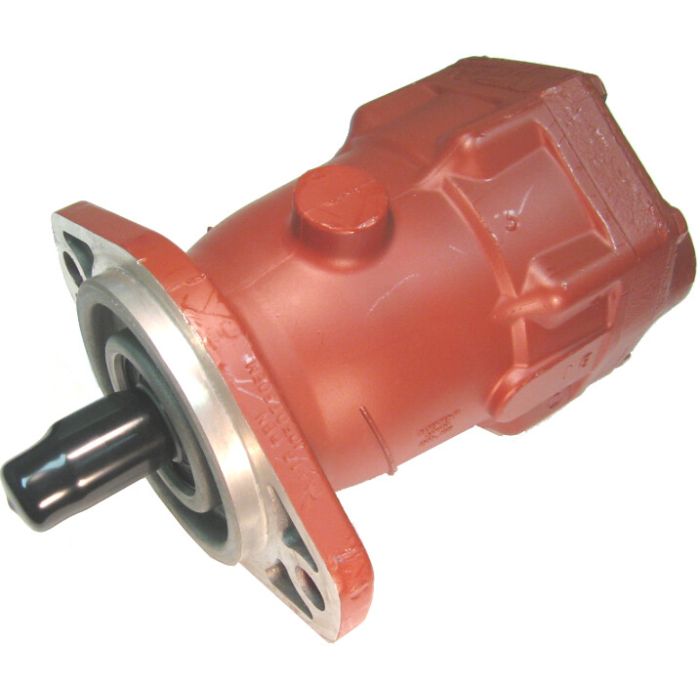

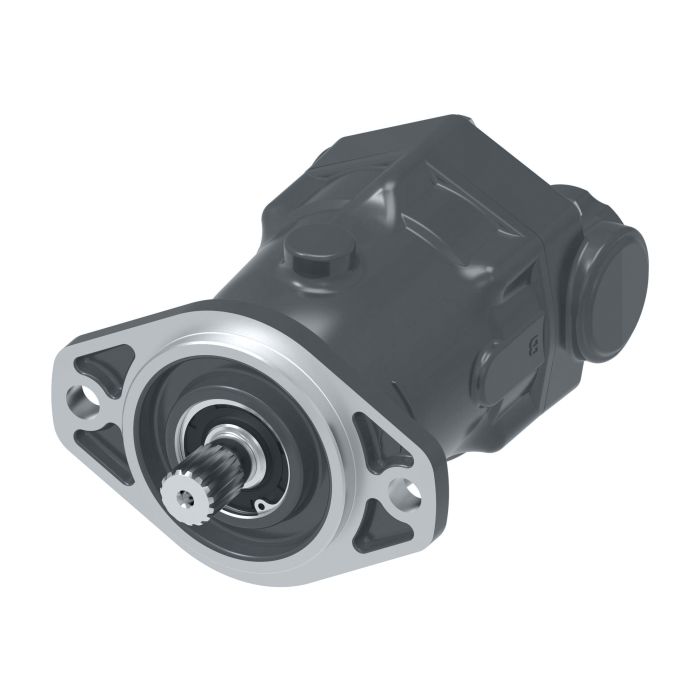

Designed for medium-duty mobile hydraulic applications, this Danfoss Power Solutions (Eaton Char-Lynn) fixed axial-piston motor delivers a flow rate of 175.71 litres per minute and a torque rating of 226.27 Nm. It is well suited for use in harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers.

The Cessna Pump features a through-drive option and is built for straightforward configuration and servicing in the field. Special features include a shuttle valve and back-pressure valve set at 17.1–20.7 bar (250–300 lbf/in²), along with two M12 x 1.5 metric O-ring diagnostic ports for convenient pressure monitoring. The alternate part number for this unit is C1KD81.

SKU: 74318-DBD

Supplier Part Number (MPN): 74318-DBD

Alternate Part Numbers: C1KD81

Specifications

Brand Danfoss	Design Code B	Dimensions 8.06 in L x 6.88 in W x 5.82 in H	Housing Material Aluminum	Mounting Type 2-Bolt Flanged	nmfc 125820	Port Location Top, Side	Rotation Direction Clockwise, Counter Clockwise	Segment Code B	Series 743 Series	Shaft Type Splined	Valve Type Shuttle, Charge Pressure

Product Questions & Answers (1)

Question by: Debbie W on Dec 18, 2025, 8:21 PM

what kinda flow rate are we talkin on this motor, and will it hold up runnin a harvester or log skidder all day?

Answer by: Customer Support on Dec 20, 2025, 10:51 AM

Flow rate on this unit comes in at 175.71 litres per minute, which puts it in solid territory for the kind of continuous demands you see on harvesters and log skidders. The torque rating sits at 226.27 newton metres, so it's got the muscle for those heavier-duty drive applications. It's built around a fixed axial-piston design, which tends to hold up well under sustained load compared to gear-type motors.
