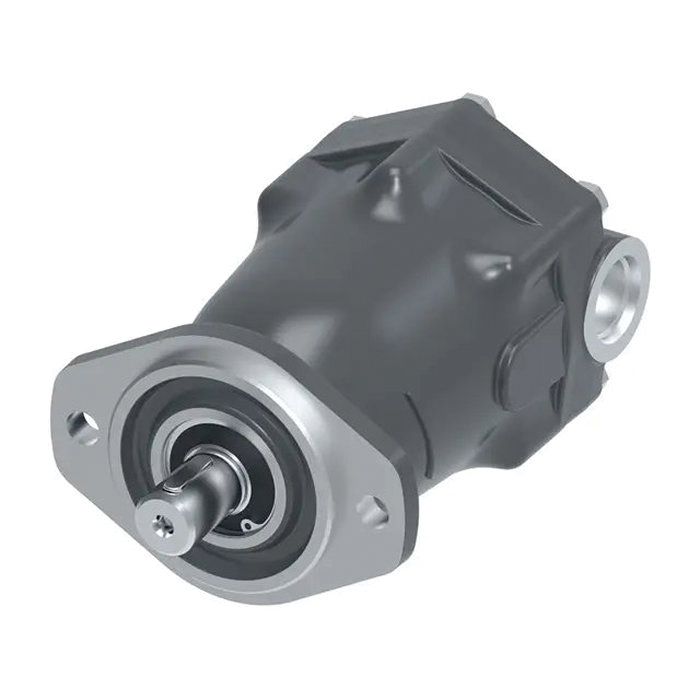

Cessna Piston MTR Assembly

Ask A Question

Description & Features

The Cessna Piston MTR Assembly, also known as a Danfoss / Eaton 74318 Series medium-duty fixed motor, is designed for easy configuration and service.

This axial-piston motor features an advanced design and a through-drive option. It includes a shuttle valve and back-pressure valve set at 17.1-20.7 bar [250-300 lbf/in2], along with 2x M12 x 1.5 metric O-ring diagnostic ports.

Typical applications include harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers. It has a product width of 6.88 inches.

SKU: 74318-DBR

Supplier Part Number (MPN): 74318-DBR

Specifications

Brand
Danfoss
Design Code
B
Dimensions
8.06 in L x 6.88 in W x 5.82 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Port Location
Top, Side
Rotation Direction
Clockwise, Counter Clockwise
Series
743 Series
Shaft Type
Splined
Valve Type
Shuttle, Charge Pressure

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Troy M on Sep 24, 2025, 6:16 PM
This motor looks like it could work for my log skidder, but I want to be sure. It's a pretty tough application.
Answer by: Customer Support on Sep 25, 2025, 9:46 PM
Designed for medium-duty use, this Danfoss / Eaton 74318 series motor is often found in log skidders as well as harvesters, sprayers, and even bark removers, so it should be suitable for your needs.
