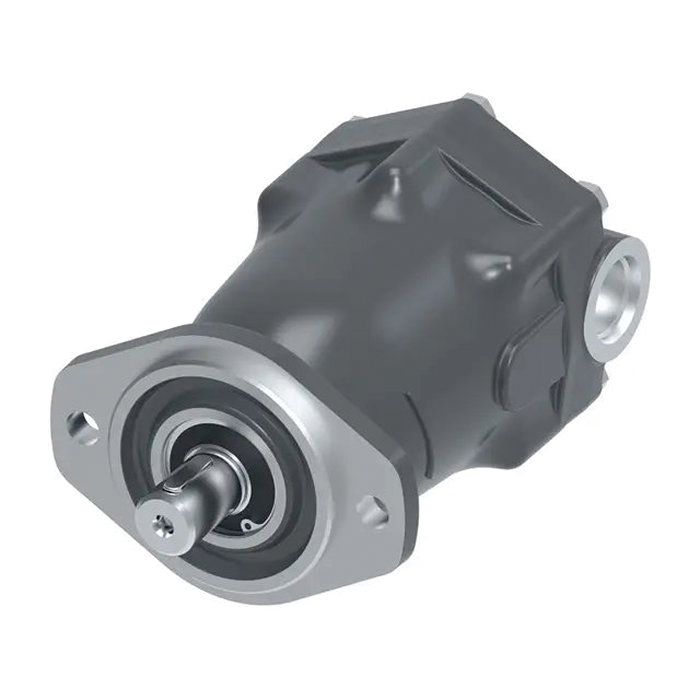

Char Lynn 2.48 CID Fixed Piston Motor AS

Description & Features

Designed for medium-duty mobile hydraulic applications, the Char Lynn 2.48 CID Fixed Piston Motor AS is a fixed axial-piston motor from Danfoss Power Solutions suited for use in harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers. Its broad application range reflects a compact, configurable design that adapts across diverse mobile equipment platforms.

The motor includes a shuttle valve and back-pressure valve set at 22.1–23.4 bar (320–340 lbf/in²), along with two M12 x 1.5 metric O-ring diagnostic ports for convenient system monitoring. A through-drive option supports tandem configurations, and the straightforward design keeps maintenance accessible in the field. At 6.88 inches wide, it fits within the space constraints typical of mobile equipment installations.

SKU: 74318-DDK

Supplier Part Number (MPN): 74318-DDK

Specifications

Brand Danfoss	Design Code B	Dimensions 8.06 in L x 6.88 in W x 5.82 in H	Housing Material Aluminum	Mounting Type 2-Bolt Flanged	Port Location Top, Side	Rotation Direction Clockwise, Counter Clockwise	Series 743 Series	Shaft Type Splined

Product Questions & Answers (1)

Question by: Rex R on Oct 10, 2025, 7:56 AM

Would this be alright to use on a mower, or is it more for them fancy machines?

Answer by: Customer Support on Oct 11, 2025, 10:53 AM

This Char Lynn motor is indeed a good fit for lawn tractors, but it’s also designed for use in heavier-duty equipment like harvesters, sprayers, and log skidders.
