Danfoss / Eaton-Piston Motor ASSY

Ask A Question

Description & Features

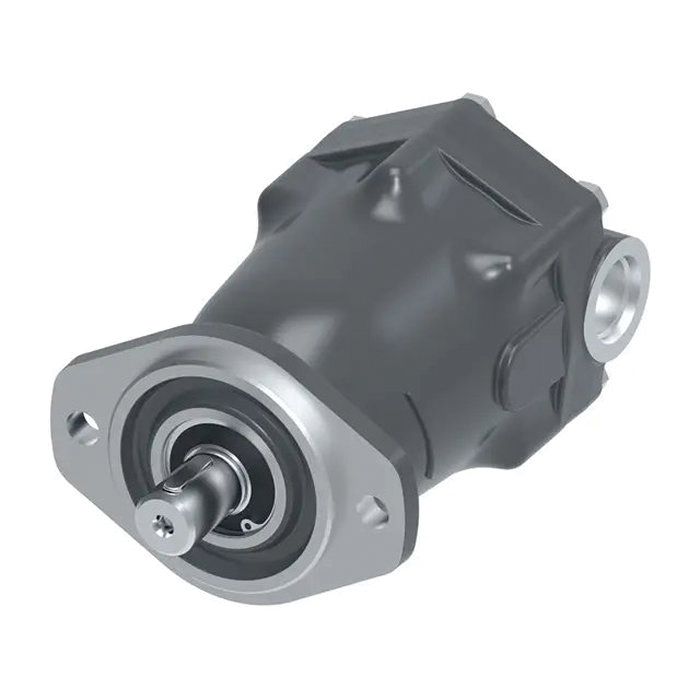

Designed for medium-duty fixed-displacement hydraulic circuits, the Danfoss / Eaton Piston Motor Assembly is a fixed axial-piston motor built for demanding mobile and industrial applications. Typical uses include harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers, making it a versatile choice across agricultural and material handling equipment.

The motor features a through-drive option that supports tandem configurations, and its design prioritizes straightforward serviceability and configuration flexibility. Special mounting provisions for Terrain King equipment are included, along with a 6.20 bar (90.0 lbf/in²) static seal with adaptor, details that are relevant when specifying this unit for specialized installations.

Supplied by Danfoss Power Solutions. Confirm compatibility with the full specification table before ordering.

SKU: 74318-DHA

Supplier Part Number (MPN): 74318-DHA

Specifications

Brand
Danfoss
Color
Black
Design Code
B
Dimensions
8.54 in L x 6.88 in W x 5.25 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
nmfc
125820
Port Location
Top, Side
Rotation Direction
Clockwise, Counter Clockwise
Segment Code
C
Series
743 Series
Shaft Size
1-1/8 in Dia
Shaft Type
Straight Keyed

Product Questions & Answers (1)

Question by: Freddie G on Jul 2, 2025, 6:02 AM
What kind of equipment is this motor typically used on? I'm trying to figure out if it'll work for my needs.
Answer by: Customer Support on Jul 4, 2025, 6:01 AM
This motor assembly is frequently found in equipment like harvesters, sprayers, log skidders, and even lawn tractors. It's designed for versatility across both agricultural and material handling applications.
