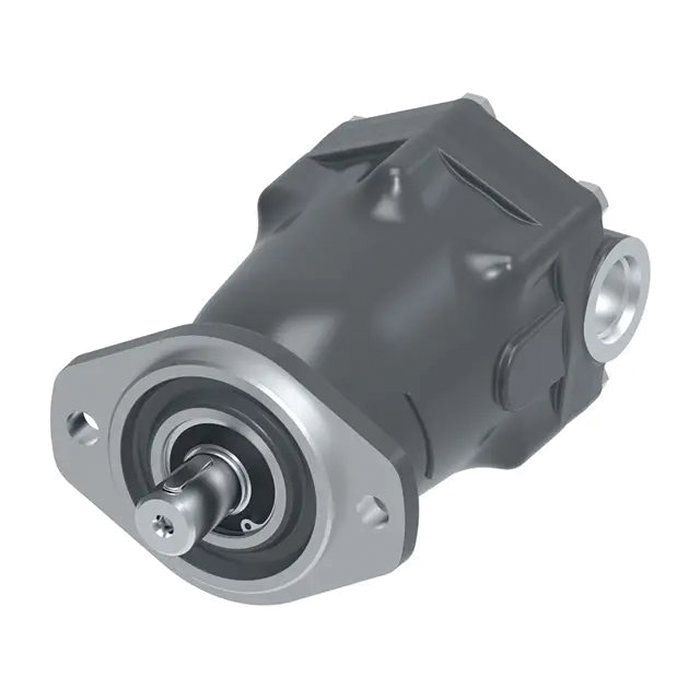

Designed for medium-duty mobile and industrial hydraulic systems, the Danfoss / Eaton-2.48 CID Fixed DIS-Axial Piston Motor delivers a torque rating of 226.27 Nm and supports flow rates up to 175.71 litres per minute. Its fixed displacement axial-piston design suits demanding drive applications including harvesters, sprayers, log skidders, scissor lifts, lift trucks, fan drives, and lawn tractors.
Configured with a shuttle valve and back-pressure valve set at 13.8–15.9 bar (200–230 lbf/in²), this motor also includes a high-pressure shaft seal and dual M12 x 1.5 metric O-ring diagnostic ports for convenient field monitoring. A through-drive option allows flexible system integration, and the design supports straightforward servicing in the field.
SKU: 74318-DKD
Supplier Part Number (MPN): 74318-DKD
|
Alternate Part Numbers
MINO-00287X00311
|
Application
Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers
|
Brand
Danfoss – Hydraulics
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
Features
Advanced design features|Through drive option|Easy to configure and service
|
Flow Rate1
175.71 litre per minute
|
ICC
HS MP Fixed Axial-Piston Motors
|
Language
English
|
Net Pack Quantity Units
EA
|
Product Width
6.88
|
Special Features
Shuttle Valve And Back-Pressure Valve Set At 13.8-15.9 Bar [200-230 Lbf/In2], And 2X M12 X 1.5 Metric O-Ring Diagnostic Ports With High Pressure Shaft Seal
|
Sub Brand
None
|
Supplier Part Number
74318-DKD
|
Torque Rating
226.27 newton metre
|
Torque Rating
226.27 newton metre
|
Product Weight
20.00 lbs
|
