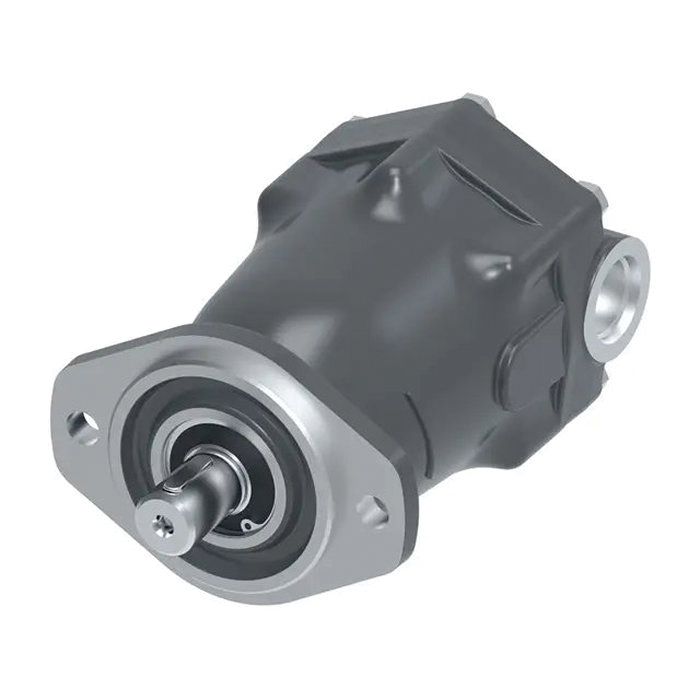

Danfoss / Eaton-2.48 CID Fixed DIS-AXIALPiston MOT

Ask A Question

Description & Features

Rated at 2.48 cubic inches of displacement, this fixed axial-piston motor from Danfoss Power Solutions is built for medium-duty mobile and industrial hydraulic circuits. The Danfoss / Eaton-2.48 CID Fixed Dis-Axial Piston Motor suits a broad range of demanding equipment types, including harvesters, sprayers, log skidders, scissor lifts, lift trucks, fan drives, lawn tractors, and bark removers.

A through-drive option supports multi-component circuit configurations, and the design is engineered for straightforward serviceability in the field. Special features include a shuttle valve and back-pressure valve set at 13.8–15.9 bar (200–230 lbf/in²), a high-pressure shaft seal, and two M12 x 1.5 metric O-ring diagnostic ports for simplified pressure monitoring and diagnostics.

SKU: 74318-DKE

Supplier Part Number (MPN): 74318-DKE

Specifications

Brand
Danfoss
Color
Black
Design Code
B
Dimensions
8.54 in L x 6.88 in W x 5.25 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Port Location
Top, Side
Rotation Direction
Clockwise, Counter Clockwise
Segment Code
C
Series
743 Series
Shaft Size
1-1/8 in Dia
Shaft Type
Straight Keyed

Product Questions & Answers (1)

Question by: Neil W on Dec 19, 2025, 10:55 AM
Reckon this fella could run a log skidder all day long without overheating?
Answer by: Customer Support on Dec 21, 2025, 6:40 AM
Designed for medium-duty mobile and industrial hydraulic circuits, this motor should handle demanding equipment like log skidders, but continuous operation depends on factors like load and ambient temperature. Make sure your system is properly sized and cooled.
