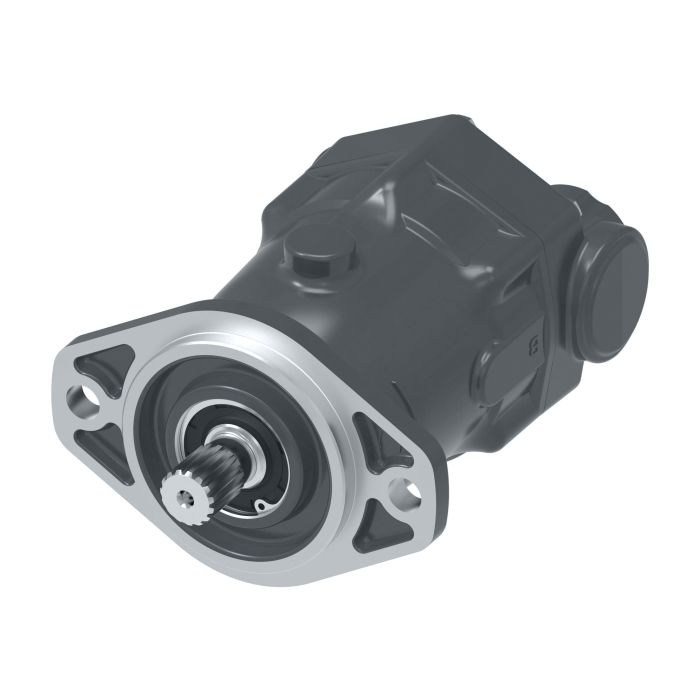

DANFOSS / EATON 3.02 PISTON MOTOR ASSY

Description & Features

Designed for medium-duty mobile hydraulic applications, the Danfoss / Eaton 3.02 Piston Motor Assy is a fixed axial-piston motor built for demanding equipment including harvesters, sprayers, log skidders, scissor lifts, and lift trucks. Cast iron construction supports reliable performance across a range of mobile and industrial platforms.

The motor delivers a torque rating of 246.78 Nm and supports flow rates up to 177.12 litres per minute. Special features include a shuttle valve and back-pressure valve set at 15.2–17.2 bar, a static seal with adaptor rated at 6.20 bar, and two M12 x 1.5 metric O-ring diagnostic ports. A through-drive option is available, and the design supports straightforward configuration and servicing in the field.

SKU: 74328-DAN

Supplier Part Number (MPN): 74328-DAN

Specifications

Application Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Advanced design features\|Through drive option\|Easy to configure and service	Flow Rate1 177.12 litre per minute	ICC HS MP Fixed Axial-Piston Motors	Language English	Net Pack Quantity Units EA	NMFC 125820	Product Material Cast Iron	Product Width 6.88	Special Features Shuttle Valve And Back-Pressure Valve Set At 15.2-17.2 Bar [220-250 Lbf/In2], 6.20 Bar [90.0 Lbf/In2] Static Seal With Adaptor, And 2X M12 X 1.5 Metric O-Ring Diagnostic Ports	Sub Brand None	Supplier Part Number 74328-DAN	Torque Rating 246.78 newton metre	Torque Rating 246.78 newton metre	Product Weight 20.00 lbs

Product Questions & Answers (1)

Question by: Stan H on Jan 11, 2026, 10:04 AM

Would this motor work good on a log skidder, or is it really meant for something else?

Answer by: Customer Support on Jan 13, 2026, 6:06 AM

This Danfoss/Eaton motor is definitely suitable for log skidders, along with other applications like harvesters, sprayers, and even lift trucks.
