Danfoss / Eaton-3.02 Fixed Motor

Description & Features

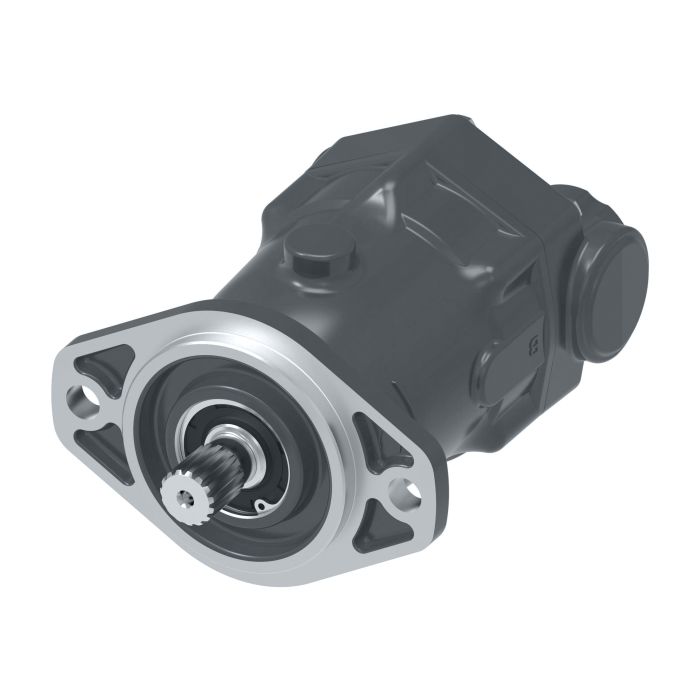

Designed for medium-duty hydraulic applications, the Danfoss / Eaton-3.02 Fixed Motor is a fixed axial-piston motor built from cast iron and rated for a torque output of 246.78 Nm at flow rates up to 177.12 litres per minute. Its robust construction makes it well suited for demanding mobile and industrial equipment including harvesters, sprayers, log skidders, lift trucks, scissor lifts, bark removers, fan drives, and lawn tractors.

The motor includes a through-drive option for flexible system configuration, and its design supports straightforward servicing in the field. Diagnostic access is provided via two 7/16-20 Unf Sae O-ring diagnostic ports, and the unit features a 6.20 bar static seal with adaptor. Supplied by Danfoss Power Solutions, this motor is stocked with a standard lead time and sold individually.

SKU: 74328-DAP

Supplier Part Number (MPN): 74328-DAP

Specifications

Application Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Advanced design features\|Through drive option\|Easy to configure and service	Flow Rate1 177.12 litre per minute	ICC HS MP Fixed Axial-Piston Motors	Language English	Net Pack Quantity Units EA	NMFC 125820	Product Material Cast Iron	Product Width 6.88	Special Features 2X.4372-20 Unf SAE O-Ring Diagnostic Ports And 6.20 Bar [90.0 Lbf/In2] Static Seal With Adaptor	Sub Brand None	Supplier Part Number 74328-DAP	Torque Rating 246.78 newton metre	Torque Rating 246.78 newton metre	Product Weight 20.00 lbs

Product Questions & Answers (1)

Question by: Donna B on Jul 1, 2025, 3:39 PM

What sort of applications does this motor work best in?

Answer by: Customer Support on Jul 2, 2025, 7:21 PM

This Danfoss/Eaton motor is well-suited for demanding mobile and industrial equipment like harvesters, sprayers, log skidders, lift trucks, and even lawn tractors.
