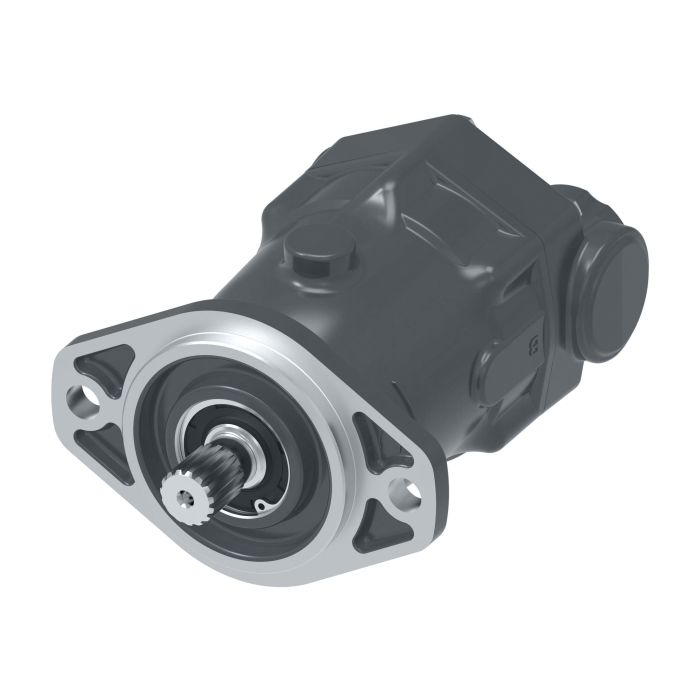

main product photo

Danfoss / Eaton-3.02 Fixed Motor

Ask A Question

Description & Features

Built for medium-duty hydraulic applications, the Danfoss / Eaton-3.02 Fixed Motor is a cast iron axial-piston motor suited to demanding mobile and industrial equipment. It delivers a torque rating of 246.78 Nm and supports flow rates up to 177.12 litres per minute, making it a capable choice for harvesters, sprayers, log skidders, lift trucks, scissor lifts, fan drives, lawn tractors, and bark removers.

The motor features a through-drive option for flexible system integration and is designed for straightforward configuration and servicing. Special integrated features include a shuttle valve and back-pressure valve set at 15.2–17.2 bar (220–250 lbf/in²), along with two M12 × 1.5 metric O-ring diagnostic ports for pressure monitoring. At 6.88 inches wide and classified under the Danfoss Power Solutions brand, this unit fits within the HS MP Fixed Axial-Piston Motors category.

SKU: 74328-DAV

Supplier Part Number (MPN): 74328-DAV

Specifications

Brand
Danfoss
Color
Black
Dimensions
8.06 in L x 6.88 in W x 5.82 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
nmfc
125820
Rotation Direction
Reversible
Segment Code
B
Series
743 Series
Shaft Size
1-5/8 in Dia
Shaft Type
Splined

Product Questions & Answers (1)

Question by: Troy M on Oct 9, 2025, 12:35 PM
So, this will actually work on a log skidder, ya think? Just wanna make sure before I order.
Answer by: Customer Support on Oct 11, 2025, 6:29 AM
This motor is indeed applicable to log skidders, as well as harvesters, sprayers, lift trucks, scissor lifts, fan drives, lawn tractors, and bark removers. It's built for medium-duty hydraulic applications.
