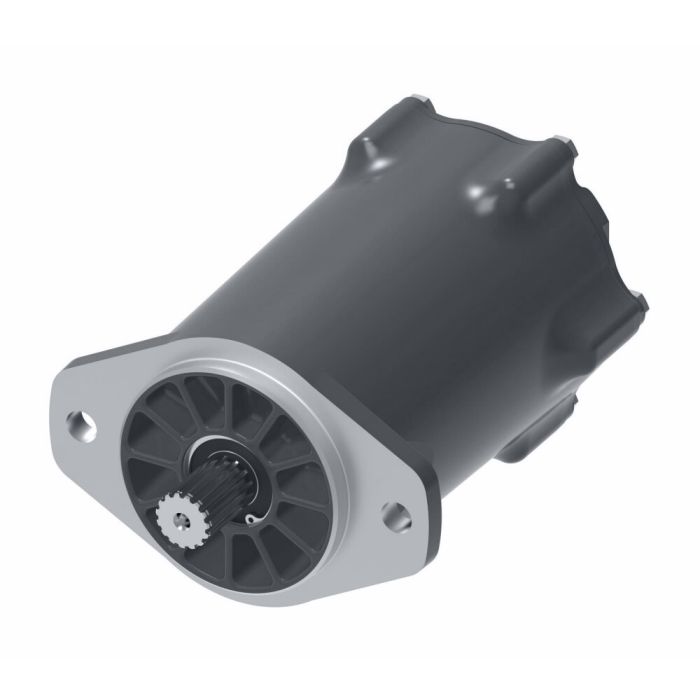

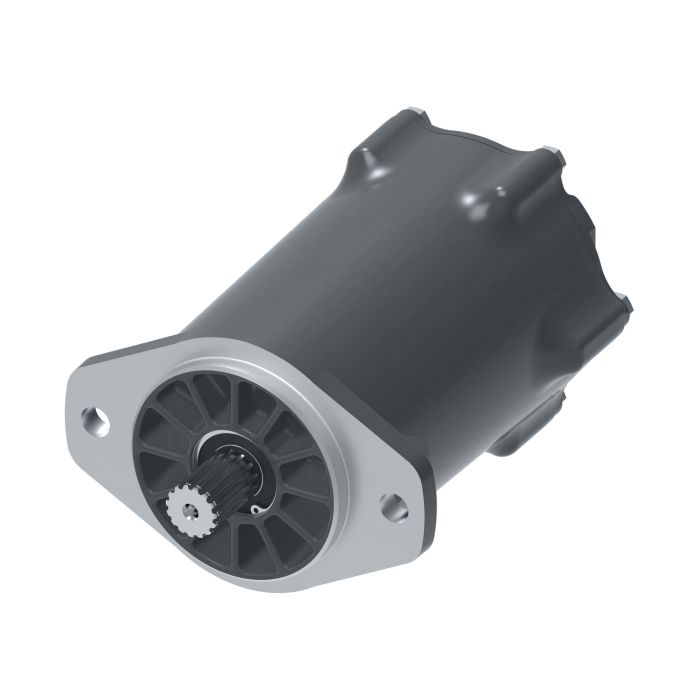

Danfoss / Eaton-HIGH Torque MTR

Ask A Question

Description & Features

This Danfoss / Eaton-HIGH Torque MTR is a medium-duty fixed motor designed for demanding applications. It features an advanced design and a through-drive option, making it easy to configure and service.

Constructed from durable cast iron, this motor delivers a torque rating of 329 newton meters and a flow rate of 150 liters per minute. The Danfoss / Eaton-HIGH Torque MTR can be used in harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers.

SKU: 74644-DAR

Supplier Part Number (MPN): 74644-DAR

Specifications

Brand
Danfoss
Bearing Type
Thrust
Color
Black
Dimensions
10.39 in L x 6.88 in W x 5.12 in H
Housing Material
Aluminum
Mounting Type
SAE BB 2-Bolt Flange
nmfc
125820
Port Location
Side
Port Size
1-1/16-12
Rotation Direction
Reversible
Series
74644 Series
Shaft Size
1 in Dia
Shaft Type
Splined
Special Features
Increased Spider Spring Loads Shim Spring to 0.25-0.76 (0.010 to 0.030) of Being Solid
Valve Type
Shuttle

Product Questions & Answers (1)

Question by: Lyle C on Mar 26, 2026, 1:24 PM
Wondering what kinda applications this motor is good for?
Answer by: Customer Support on Mar 27, 2026, 4:40 PM
This Danfoss/Eaton motor handles jobs like powering harvesters, sprayers, log skidders, fan drives, lawn tractors, lift trucks, scissor lifts, and bark removers.
