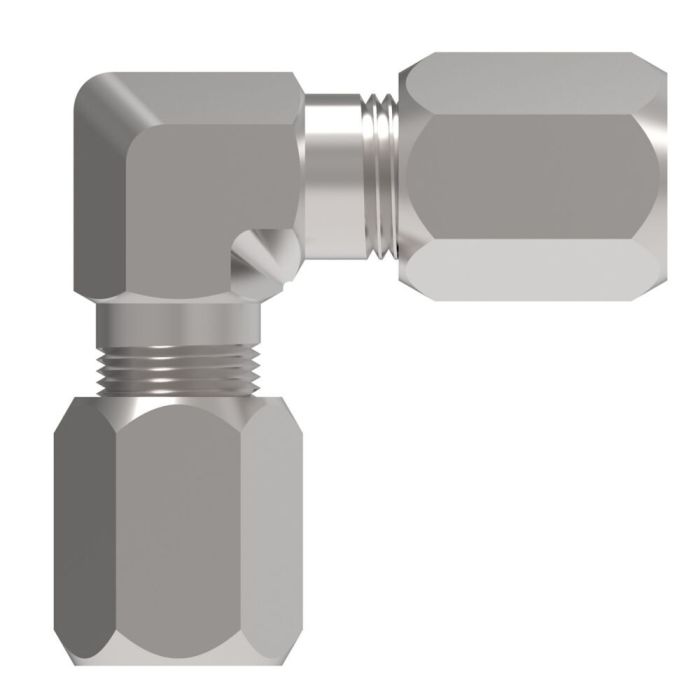

DANFOSS / EATON ERMETO -20 STEEL 90 UNION ELBOW

Description & Features

Designed for demanding hydraulic line connections, the Danfoss / Eaton Ermeto -20 Steel 90 Union Elbow is a carbon steel fitting that joins two female tube or hose ends at a 90-degree angle. It carries certifications to ASA, SAE 080201, MS, and ASME standards, making it appropriate for a wide range of industrial hydraulic applications where pressure requirements exceed conservative SAE benchmarks.

Dura-Kote plating provides strong corrosion resistance suited to harsh service environments. The fitting accommodates end sizes of 1.09 and 0.75 with a hex size of 2 and a drop dimension of 1.89, offering reliable geometry for routing lines where direction changes are required. As part of the Eaton Ermeto product family, marketed under the Aeroquip brand, it draws from a broad range of compatible styles and configurations, supporting flexible system design across varied industrial installations.

SKU: 7505X20

Supplier Part Number (MPN): 7505X20

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Hose	Connection Type 1 Hose	Connection Type 2 Hose	Dimension Standards SAE 080201	Dimensions 1.093 in Dia	Drop Dimensions 1.89 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 1.61 in, 2 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 7505X Series	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hex Size
7505X10 7000 Series Ermeto Steel 90 Elbow	5/8 in	5/8 in	0.87 in, 1 in
7505X12 7000 Series Ermeto Steel 90 Elbow	3/4 in	3/4 in	1.06 in, 1.25 in
7505X6 7000 Series Ermeto Steel 90 Elbow	3/8 in	3/8 in	0.55 x 0.688 in
7505X4 7000 Series Ermeto Steel 90 Elbow	1/4 in	1/4 in
7505X5	5/16 in	5/16 in	0.55 in, 0.63 in
7505X8	1/2 in	1/2 in	7/8 x 3/4 in
7505X14	7/8 in	7/8 in	1.26 in, 1.38 in
7505X16	1 in	1 in	1.26 in, 1.5 in
7505X24	1-1/2 in	1-1/2 in	2-1/4 in

Product Questions & Answers (1)

Question by: Rhonda W on Jan 5, 2026, 2:42 PM

Reckon this'll hold up in a hydraulic system pushin' past standard SAE pressures?

Answer by: Customer Support on Jan 7, 2026, 6:15 AM

Absolutely. This Danfoss/Eaton Ermeto elbow is certified to ASA, SAE 080201, MS, and ASME standards, meanin' it's made for the kind of heavy-duty applications where you need a little extra assurance.
