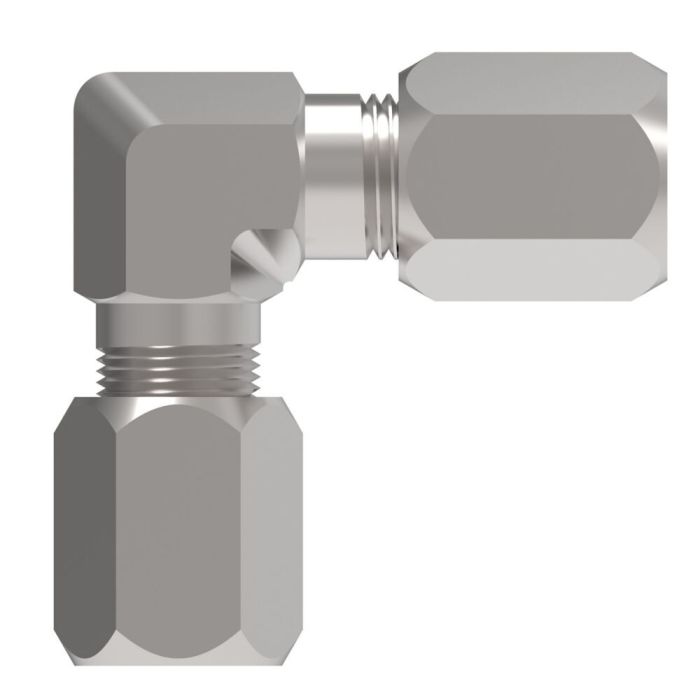

A carbon steel 90° union elbow designed for line, hose, and tube connections on both ends, the Danfoss / Eaton Ermeto -24 Steel 90 Union Elbow is built to perform across a wide range of hydraulic system demands. Both ends are female configuration, making it well-suited for union-style inline connections where directional routing is required.
Dura-Kote plating provides strong corrosion resistance, while the construction supports operating pressures that exceed standard SAE requirements. Certified to MS, SAE 080201, ASA, and ASME standards, this fitting is appropriate for demanding industrial applications where performance margins beyond conservative conditions are needed. The carbon steel body and 2.25-inch hex offer solid mechanical integrity, and the fitting is available with fluid compatibility documentation from Eaton for reference during specification.
SKU: 7505X24
Supplier Part Number (MPN): 7505X24
|
Alternate Part Numbers
MINO-00015X07971
|
Application
varied applications far exceeding the conservative conditions
|
Certifications
MS|SAE 080201|ASA|ASME
|
Drop Dimension
2.02
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
1.34
|
End Size 2
0.50
|
End Type 1
Line/Hose/Tube
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
2.25
|
ICC
Elbow Adapters
|
Item Type
Line/Hose/Tube Female/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.25
|
Sub Brand
None
|
Supplier Part Number
7505X24
|
Product Weight
2.57 lbs
|
