COMPRESSION, STRAIGHT

Ask A Question

Description & Features

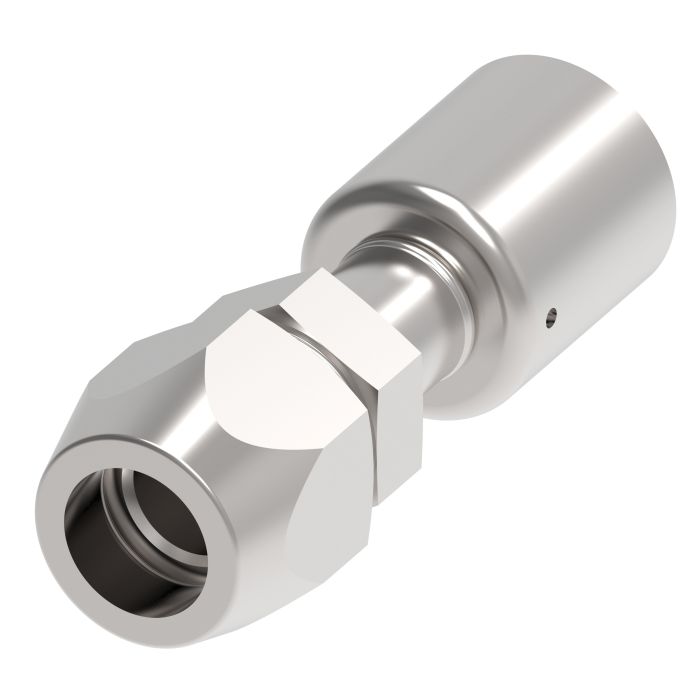

Weatherhead by Danfoss / Eaton 757 E Series Crimp Hose Fittings Male Rigid Compression Fitting

Specifications

Brand
Danfoss
a Dimensions
2.59 in
Compatible Hose ID
3/8 in
Compatible Tube OD
0.31 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Compression, Hose
Connection Type 1
Hose
Connection Type 2
Male Compression
Construction Style
Crimp
Cut-Off Factor
1.38 in
Dimensions
2.59 in L
End Gender 1
Male
End Size 1
5/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H757 Series Hoses
Hex Size
0.75 x 0.62 in
Hose Dash Size
06
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF
Tube Outside Diameter 1
0.31 in

Product Questions & Answers (2)

Question by: Rex M on Jun 30, 2025, 7:51 AM
trying to match up a hose end i’ve got, is this one the -6 with a 5/8 male SAE 45 on it?
Answer by: Customer Support on Jul 1, 2025, 5:56 PM
It’s a Weatherhead 757 E Series crimp hose fitting with a -6 hose dash size and a 0.625 inch male SAE 45 end.
Question by: Rod M on Mar 18, 2026, 6:01 AM
Got a -6 hose line I'm trying to terminate with a male SAE 45 end, this the right fitting for that job?
Answer by: Customer Support on Mar 20, 2026, 6:53 AM
For a -6 hose with a male SAE 45 connection on one end going to a line or tube on the other, yes, that's exactly what this fitting is built for. It's a straight compression style, so there's no angle to account for. The hex on the compression side runs 0.75 inch, and the male end comes in at 0.625 inch. Carbon steel construction with Dura-Kote plating, so corrosion resistance is solid for most working environments.
