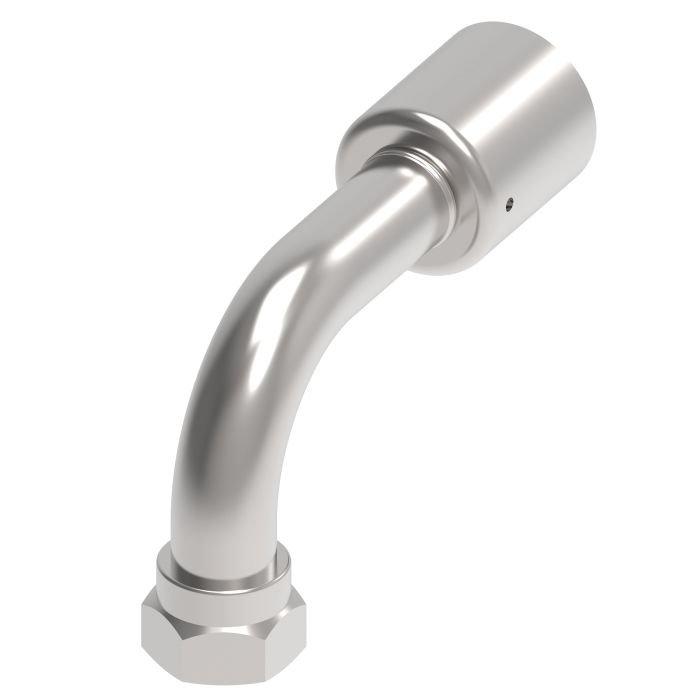

main product photo

FemaleTube-O, 90 Deg EL

Ask A Question

Description & Features

Designed for R134a and R12 refrigerant systems, this carbon steel 90-degree elbow fitting is built for heavy-duty truck, industrial, and automotive applications. The female swivel end (3/4 in.) connects to a -6 dash size hose or tube, with a drop dimension of 1.31 in. providing useful clearance in tight routing configurations.

The FemaleTube-O, 90 Deg EL carries Aeroquip's Dura-Kote plating, which provides strong corrosion resistance suited to demanding service environments. Its system-engineered construction is intended to extend hose assembly service life and support maximum uptime. Supplied as a complete fitting assembly, this unit integrates into crimp-style hose assemblies using a tube O-ring face seal interface.

SKU: 75706E-Z89

Supplier Part Number (MPN): 75706E-Z89

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
0.38 in
Compatible Tube OD
1/2 in
Connection Size 1
3/8 in
Connection Size 2
3/4 in
Connection Type
FNPT, Hose
Connection Type 1
Hose
Connection Type 2
Female NPT
Construction Style
Crimp
Cut-Off Factor
2-7/8 in
Drop Dimensions
1.31 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
H757 Series Hoses
Hex Size
7/8 in
Hose Dash Size
06
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Tube Outside Diameter 1
1/2 in

Product Questions & Answers (1)

Question by: Jean W on Jul 19, 2025, 3:20 PM
Will this fitting hold up if its used with R12 refrigerant in a semi truck application?
Answer by: Customer Support on Jul 21, 2025, 12:35 PM
This fitting assembly is suitable for both R134a and R12 refrigerant systems, and its carbon steel construction, along with Aeroquip's Dura-Kote plating, makes it durable enough for heavy-duty truck applications.
