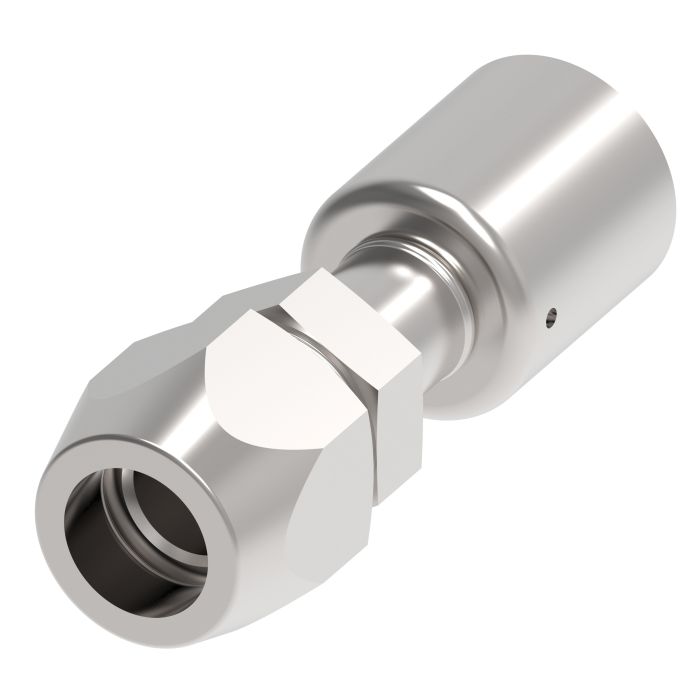

main product photo

COMPRESSION, STRAIGHT

Ask A Question

Description & Features

Weatherhead by Danfoss / Eaton 757 E Series Crimp Hose Fittings Male Rigid Compression Fitting

Specifications

Brand
Danfoss
Compatible Hose ID
5/8 in
Compatible Tube OD
0.41 in
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Hose, Male ORB
Connection Type 1
Hose
Connection Type 2
Male ORB
Construction Style
Crimp
Cut-Off Factor
1.62 in
Dimensions
2.9 in L
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H757 Series Hoses
Hex Size
0.875 x 1.063 in
Hose Dash Size
08
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Tube Outside Diameter 1
0.406 in

Product Questions & Answers (3)

Question by: Roy D on Nov 9, 2025, 12:49 PM
What size is that hex? Looks like I need a pretty good wrench on this fella.
Answer by: Customer Support on Nov 11, 2025, 6:49 AM
You'll need a 1.0625 inch wrench for the hex on this fitting.
Question by: Roy O on Jul 27, 2025, 1:13 PM
what size hose is this fitting made for, and is it the male end on the ORB side?
Answer by: Customer Support on Jul 29, 2025, 7:16 AM
Sized for a dash 8 hose, and yes, the ORB port end is the male connection. The other end handles the line, hose, or tube side, with a 1.0625 inch hex for wrench access during installation. Carbon steel construction throughout.
Question by: Jerry T on Apr 9, 2025, 9:17 AM
got a hose that’s -8, is this the right fitting for it?
Answer by: Customer Support on Apr 11, 2025, 8:04 AM
For hose size, it matches a -8 dash hose fitting. It’s a Weatherhead 757 E Series crimp hose fitting, so it’s intended to be used as part of a crimped hose assembly in that dash size.
